826925-8 - TE Connectivity

Description: Body Features: Primary Product Color Green | Configuration Features: Number of Rows 2 | PCB Mount Orientation Vertical | Connector Contact Load Condition Fully Loaded | Board-to-Board Configuration Parallel | Number of Positions 16 | Contact Features: Contact Mating Area Plating Material Tin | Contact Base Material Phosphor Bronze | Contact Shape & Form Square | PCB Contact Termination Area Plating Material Tin | Contact Mating Area Plating Material Thickness 3 MICM | Mating Square Post Dimension .025 INCH

Download 826925-8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
826925-8 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

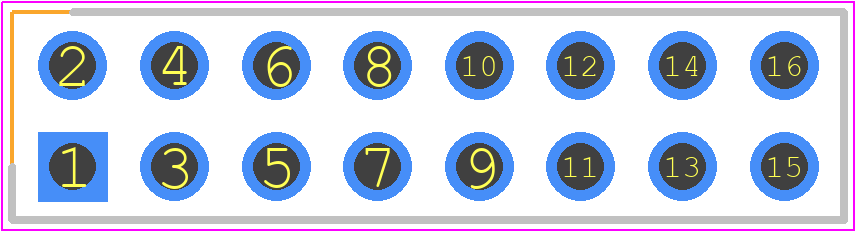

826925-8 - TE Connectivity PCB footprint - Header, Vertical - Header, Vertical - 826925-8
click to zoom
3D Models
826925-8 - TE Connectivity - 3D model - Header, Vertical - 826925-8
click to zoom

826925-8 Details

  • Manufacturer Part Number:

    826925-8

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    23 Weeks, 2 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    9.1

  • Additional Feature:

    AMPMODU

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    5000000000 Ω

  • Insulator Color:

    GREEN

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    5A

  • Mating Contact Row Spacing:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -65 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    118.11u inch

  • Rated Current (Signal):

    5 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.126 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    16

  • UL Flammability Code:

    94V-0

826925-8 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure proper connection and prevent damage to the connector.
  • Yes, the 826925-8 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as industrial control systems, transportation, and more.
  • The 826925-8 connector has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's essential to ensure proper sealing and protection when using the connector in outdoor environments.
  • The 826925-8 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F), making it suitable for use in a wide range of applications, from industrial control systems to automotive and more.
  • While the datasheet specifies 24 AWG wire, the connector can accommodate wire sizes ranging from 20 AWG to 26 AWG. However, it's essential to ensure that the wire size and insulation meet the connector's specifications to ensure reliable connections.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

826925-8 Overview

Use the download button to access the 826925-8 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 82692, or try a keyword search, such as Headers and Edge Type Connectors
