827050-1 - TE Connectivity

Description: TE Connectivity, 5mm Pitch 25 Way 2 Row Straight PCB Header, Solder Termination

Download 827050-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
827050-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

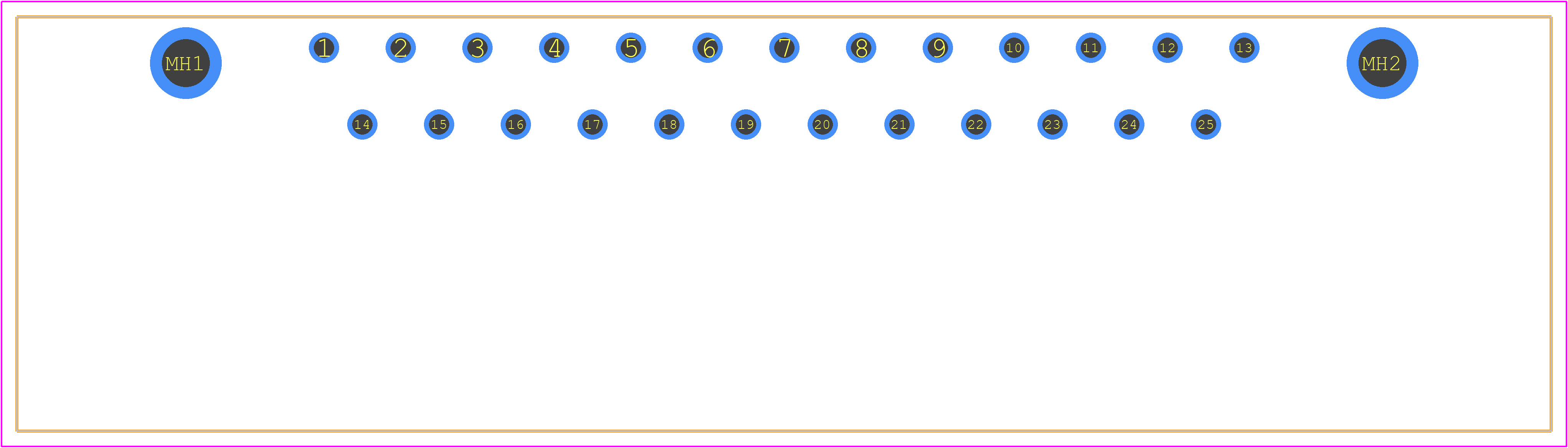

827050-1 - TE Connectivity PCB footprint - Other - Other - 827050-1-1
click to zoom
3D Models
827050-1 - TE Connectivity - 3D model - Other - 827050-1-1
click to zoom

827050-1 Details

  • Manufacturer Part Number:

    827050-1

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    3

  • Body Breadth:

    1.09 inch

  • Body Depth:

    0.984 inch

  • Body Length:

    2.82 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Terminal Pitch:

    5 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    25
