Part Image

828801-2 - TE Connectivity

Description: Body Features: Primary Product Color Black | Configuration Features: Number of Sections 1 | Number of Positions 6 | PCB Mount Orientation Horizontal | Number of Rows 2 | Contact Features: Contact Type Tab | Mating Tab Width 3 MM | Mating Tab Width .118 INCH | Contact Size 3mm | Mating Tab Thickness .031 INCH | Contact Mating Area Plating Material Tin | Mating Tab Thickness .8 MM | Dimensions: Connector Length 31.1 MM | Connector Length 1.358 INCH | Profile Height from PCB 19 MM | Connector Width 1.02 INCH |

Download 828801-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
828801-2 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

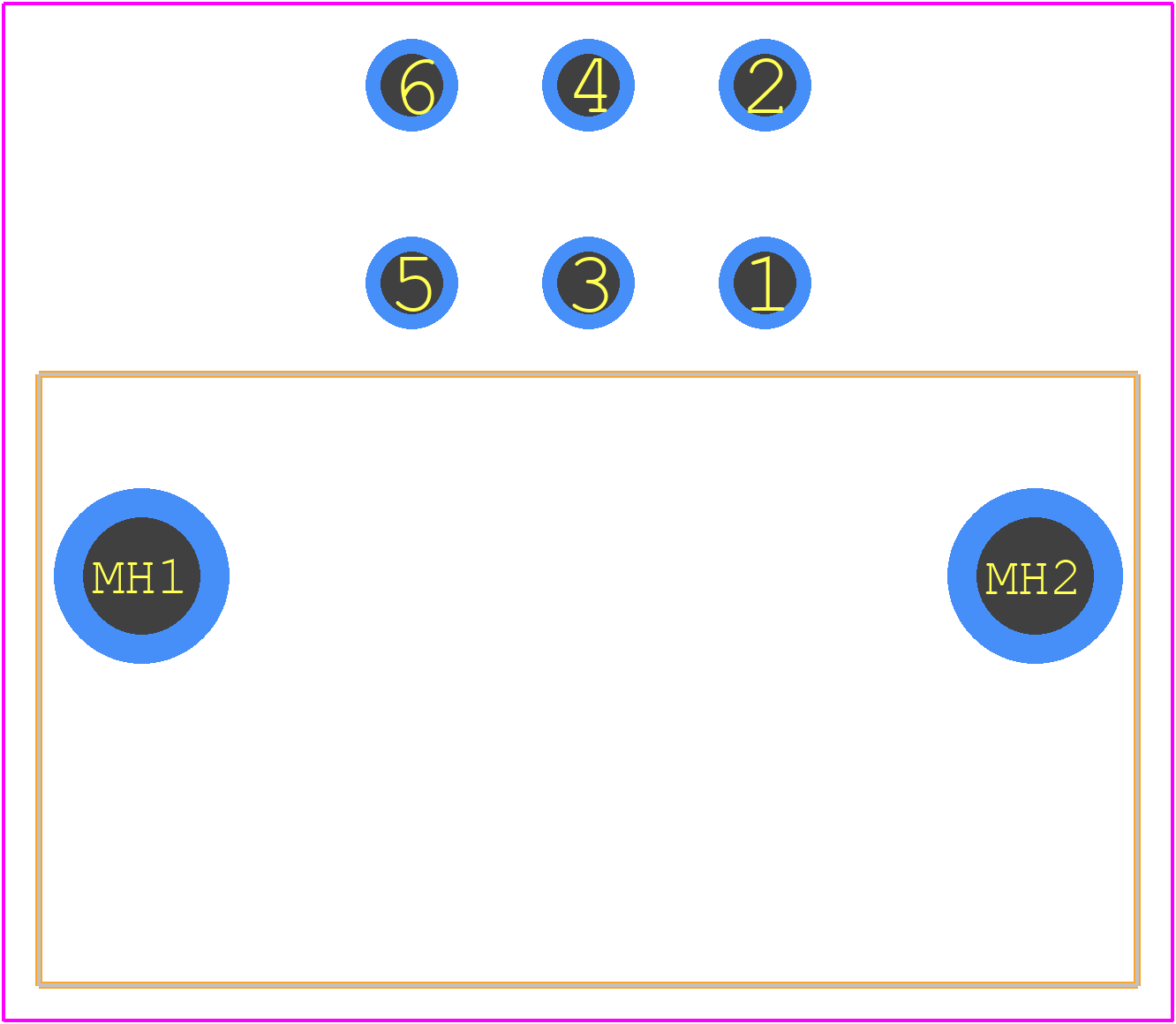

828801-2 - TE Connectivity PCB footprint - Other - Other - 828801-2-2
click to zoom
3D Models
828801-2 - TE Connectivity - 3D model - Other - 828801-2-2
click to zoom

828801-2 Details

  • Manufacturer Part Number:

    828801-2

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    39 Weeks

  • Manufacturer:

    TE Connectivity

  • Body Breadth:

    1.02 inch

  • Body Depth:

    1.003 inch

  • Body Length:

    1.358 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mating Information:

    929504-2

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Shell Material:

    GLASS FILLED POLYCARBONATE/POLYBUTYLENE TEREPHTHALATE

  • Terminal Pitch:

    5.6 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    6

828801-2 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (5-7 in-lbs) for the screw terminals on the 828801-2 connector.
  • Yes, the 828801-2 connector is designed to withstand high-vibration environments, making it suitable for applications such as industrial automation, transportation, and aerospace.
  • The 828801-2 connector is designed to operate in temperatures ranging from -40°C to 125°C and can withstand humidity up to 95% RH. However, it's essential to follow proper installation and sealing guidelines to ensure optimal performance.
  • The maximum current rating for each contact on the 828801-2 connector is 3A. However, it's essential to consider the overall system design, wire gauge, and insulation to ensure safe and reliable operation.
  • The 828801-2 connector is suitable for both power and signal transmission applications. Its design and materials ensure reliable connections for a wide range of signal frequencies and power levels.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

828801-2 Overview

Use the download button to access the 828801-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 82880, or try a keyword search, such as Combination Line Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
