The recommended torque for the screw terminals is typically between 0.5 to 1.5 in-lbs (0.056 to 0.169 Nm), but it's best to consult the manufacturer's application notes or contact their technical support for specific guidance.
Yes, the 829-22-005-20-001101 connector is designed to withstand vibration and shock, but it's essential to ensure proper mounting and screw torque to maintain reliability. Consult the manufacturer's documentation and perform necessary testing to validate its performance in your specific application.
The 829-22-005-20-001101 connector has a rated operating temperature range of -55°C to 125°C. However, it's crucial to consider the specific temperature requirements of your application and ensure that the connector's materials and performance meet those needs.
While it's technically possible to use a larger wire size, it's not recommended as it may compromise the connector's performance and reliability. The recommended wire gauge is specified to ensure optimal electrical and mechanical performance. Using a larger wire size may lead to issues with wire stripping, crimping, and connector reliability.
Yes, it's essential to follow proper cleaning and maintenance procedures to ensure the connector's reliability and performance. Consult the manufacturer's documentation for recommended cleaning methods, and avoid using harsh chemicals or abrasive materials that may damage the connector's components.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
829-22-005-20-001101 Overview

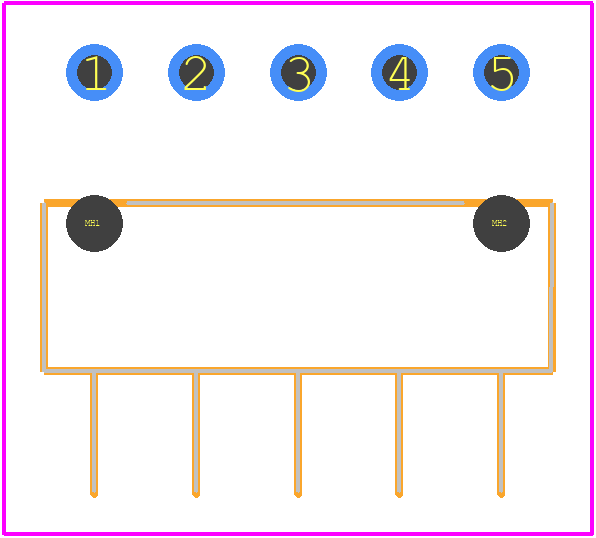

Use the download button to access the 829-22-005-20-001101 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 829-2,
or try a keyword search, such as Headers and Edge Type Connectors
