The recommended torque for the screw terminals is typically between 0.5 to 1.5 in-lbs (0.056 to 0.169 Nm), but it's best to consult the manufacturer's application notes or contact their technical support for specific guidance.
Yes, the 829-22-005-20-002101 connectors are designed to withstand vibration and shock. They have a rugged construction and are suitable for use in harsh environments, but it's essential to review the manufacturer's specifications and testing data to ensure they meet the specific requirements of your application.
The 829-22-005-20-002101 connectors have a temperature rating of -55°C to +125°C, making them suitable for use in high-temperature applications. However, it's crucial to consider the temperature rating of the specific materials used in the connector and the overall system design to ensure reliable operation.
Yes, the 829-22-005-20-002101 connectors are designed for automated assembly and can be easily integrated into pick-and-place machines and other automated assembly systems. Consult the manufacturer's documentation and technical support for specific guidance on assembly and processing.
The lead time and minimum order quantity for the 829-22-005-20-002101 connectors may vary depending on the supplier, region, and availability. It's best to contact the manufacturer or authorized distributors for the most up-to-date information on lead times and MOQs.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
829-22-005-20-002101 Overview

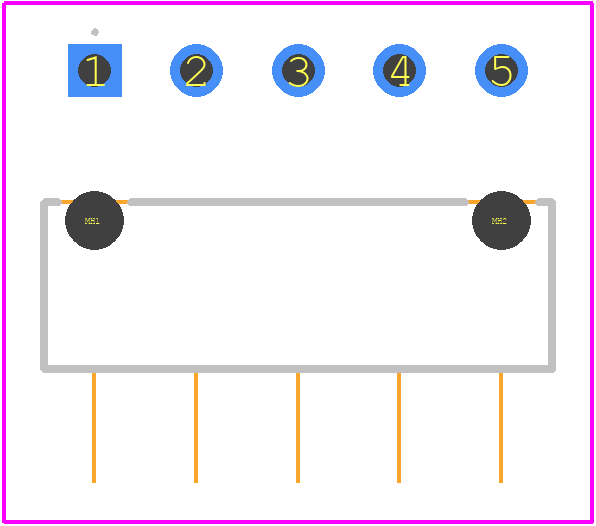

Use the download button to access the 829-22-005-20-002101 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 829-2,
or try a keyword search, such as Headers and Edge Type Connectors
