Description:4-Channel T1/E1/J1 Transceiver (Line Interface Unit + Framer) with clock recovery and SSM support, optimized for telecommunication applications such as Central Office, PABX, Wireless Base Stations, T1/E1/J1 ATM Gateways, Multiplexers, LAN/WAN Routers, SONET/SDH Add/Drop Equipment
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a common ground point for the analog and digital grounds.
Use a heat sink with a thermal resistance of 10°C/W or lower, and ensure good airflow around the device. Also, reduce the power consumption by optimizing the system design and using power-saving modes.
Critical timing parameters include clock frequency, clock skew, and setup/hold times. Ensure these parameters are met by using a clock generator with a stable frequency, and by adding buffers or delay lines to the clock signal if necessary.
Use a logic analyzer or oscilloscope to capture the signals and identify the source of the issue. Check the power supply voltage, clock signal, and reset signal for any anomalies. Also, review the firmware code for any potential issues.
Use ESD protection devices such as TVS diodes or ESD arrays on the I/O lines, and ensure that the PCB has a solid ground plane and a separate power plane. Also, handle the device by the body or use an anti-static wrist strap to prevent ESD damage.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
82P2284BBG Overview

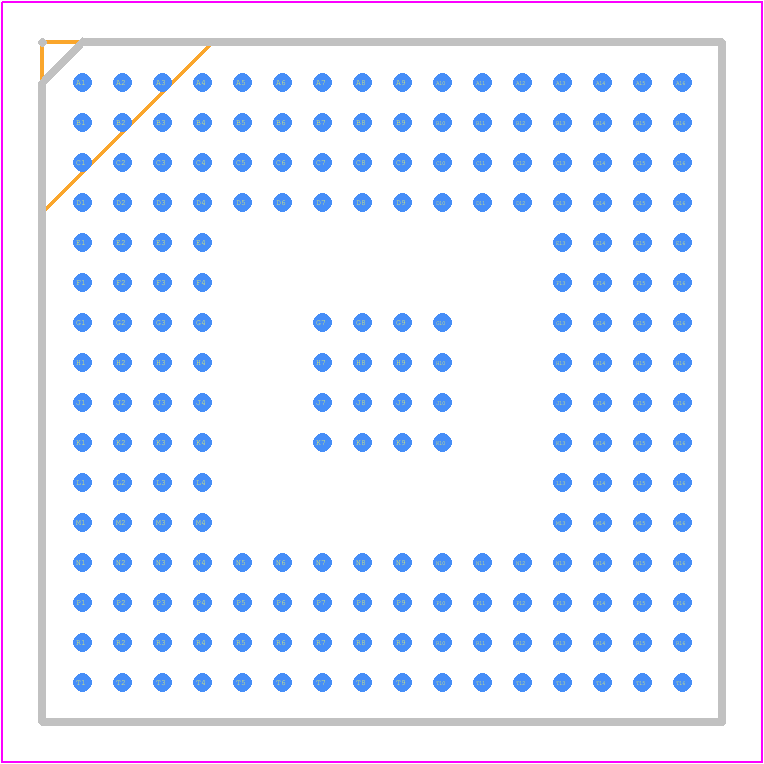

Use the download button to access the 82P2284BBG schematic symbol, PCB footprint, and 3D model.
