82P2916BFG8 - Renesas Electronics

Description: 16-Channel T1/E1/J1 Short Haul Line Interface Unit. This device has an adaptive equalizer integrated, performs clock.data recovery, line decoding/encoding and has one jitter attenuator. Optimized to be used in LAN, WAN, Routers, Wireless Base Stations, Gateways etc.

Download 82P2916BFG8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

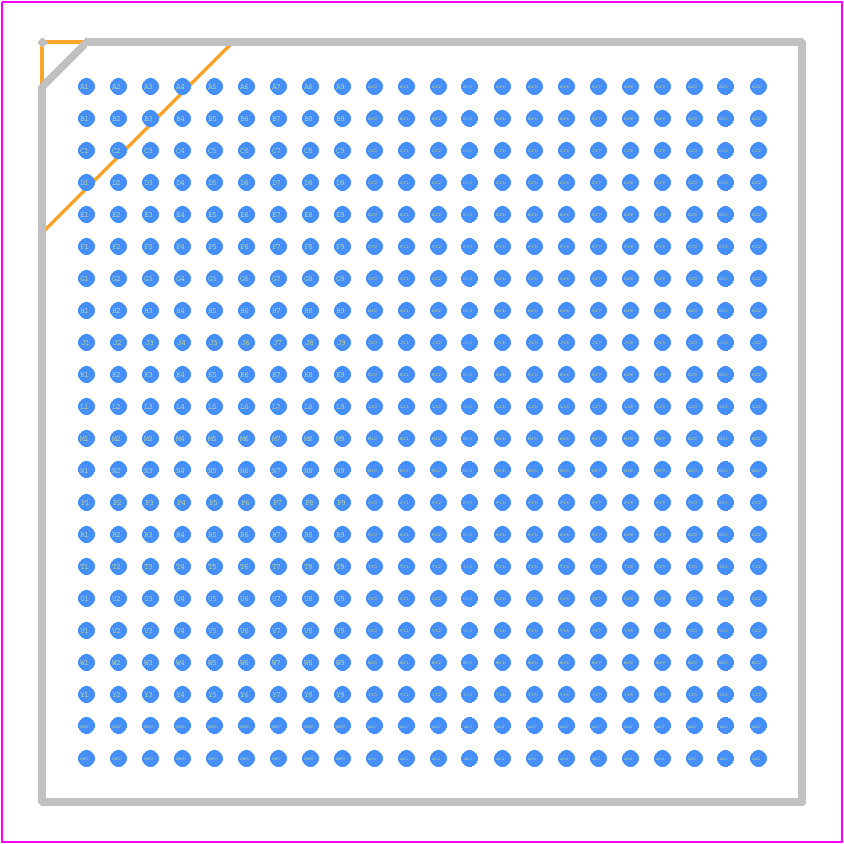

82P2916BFG8 - Renesas Electronics PCB footprint - BGA - BGA - 484-BGA
click to zoom
3D Models
82P2916BFG8 - Renesas Electronics  - 3D model - BGA - 484-BGA
click to zoom

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

82P2916BFG8 Overview

Use the download button to access the 82P2916BFG8 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 82P29, or try a keyword search, such as Network Interfaces
