Description:The 82P33831 Synchronization Management Unit (SMU) provides tools to manage timing references, clock sources and timing paths for IEEE 1588 and Synchronous Ethernet (SyncE) based clocks. The device supports up to three independent timing paths that control: IEEE 1588 clock synthesis; SyncE clock generation; and general purpose frequency translation. The device supports physical layer timing with Digital PLLs (DPLLs) and it supports packet based timing with Digitally Controlled Oscillators (DCOs). Input-to-i
Renesas provides a recommended PCB layout guide in their application note (R01AN2732EU0100) which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The 82P33831ABAG has a built-in power sequencing feature. To implement it, connect the PSON pin to a GPIO pin of the processor, and use the processor's GPIO control to sequence the power rails. Refer to the datasheet and application notes for specific implementation details.
The 82P33831ABAG has an operating temperature range of -40°C to +85°C. However, it's essential to consider the derating curves and thermal management guidelines provided in the datasheet to ensure reliable operation within this range.
While the 82P33831ABAG is designed for use with Renesas processors, it can be used with other processors or platforms with similar power requirements. However, compatibility and performance may vary. Consult with Renesas support or a qualified engineer to ensure compatibility and optimal performance.
Renesas provides a troubleshooting guide in their application note (R01AN2732EU0100) which covers common issues, such as power-on reset, voltage monitoring, and thermal shutdown. Additionally, consult the datasheet and contact Renesas support for further assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
82P33831ABAG Overview

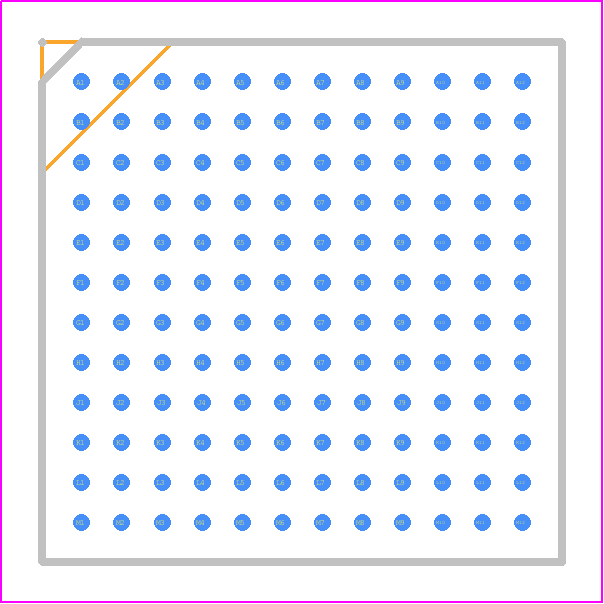

Use the download button to access the 82P33831ABAG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 82P33,
or try a keyword search, such as Clock Generators
