82V3380EQG - Renesas Electronics

Description: The 82V3380 is an integrated, single-chip solution for the Synchronous Equipment Timing Source for Stratum 2, 3E, 3, SMC, 4E and 4 clocks in SONET / SDH equipments, DWDM and Wireless base station, such as GSM, 3G, DSL concentrator, Router and Access Network applications. The device supports three types of input clock sources: recovered clock from STM-N or OC-n, PDH network synchronization timing and external synchronization reference timing. Based on ITU-T G.783 and Telcordia GR-253-CORE, the device consist

Download 82V3380EQG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
82V3380EQG - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

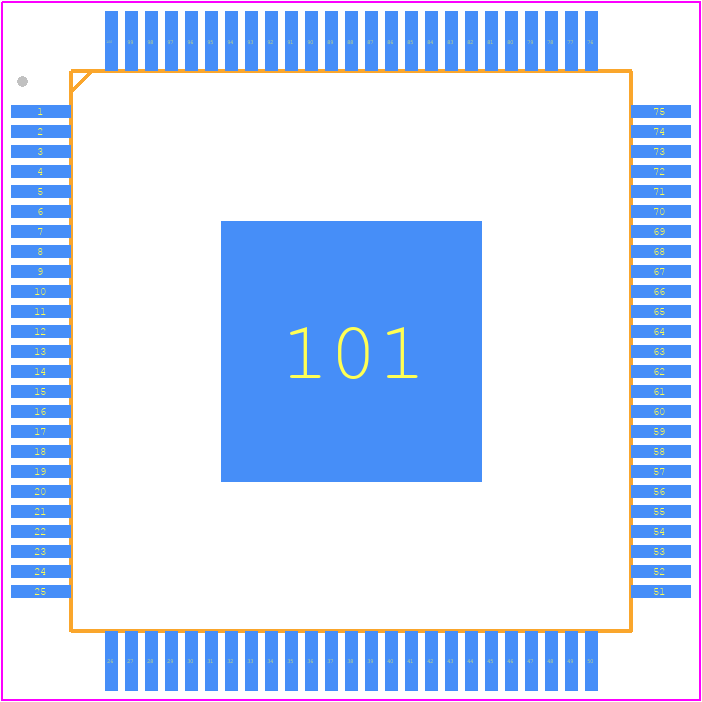

82V3380EQG - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - EQG_TQFP100_2021
click to zoom
3D Models
82V3380EQG - Renesas Electronics - 3D model - Quad Flat Packages - EQG_TQFP100_2021
click to zoom

82V3380EQG Details

  • Manufacturer Part Number:

    82V3380EQG

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    TQFP

  • Package Description:

    TQFP-100

  • Pin Count:

    100

  • Manufacturer Package Code:

    EQG100

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    3

  • Applications:

    ATM;SDH;SONET

  • JESD-30 Code:

    S-PQFP-G100

  • Length:

    14 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    100

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Equivalence Code:

    QFP100,.63SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.6 mm

  • Supply Current-Max:

    528 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ATM/SONET/SDH SUPPORT CIRCUIT

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    14 mm

82V3380EQG Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (R01AN4213EU0100) which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The 82V3380EQG has a programmable clock generator that allows for flexible clock frequency configuration. Refer to the datasheet section 8.3.1 'Clock Generator' for register settings and configuration details.
  • The 82V3380EQG has an operating temperature range of -40°C to +85°C, as specified in the datasheet section 4.1 'Absolute Maximum Ratings'. However, it's recommended to operate within the recommended operating temperature range of -20°C to +70°C for optimal performance and reliability.
  • Renesas provides an I2C troubleshooting guide in their application note (R01AN4214EU0100) which covers common issues, debugging techniques, and solutions for I2C interface problems.
  • The power consumption of the 82V3380EQG varies depending on the operating mode. Refer to the datasheet section 6.2 'Power Consumption' for detailed power consumption values in different operating modes, including active, standby, and sleep modes.
