82V3380PFG - Renesas Electronics

82V3380PFG Details

• Manufacturer Part Number:

  82V3380PFG

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

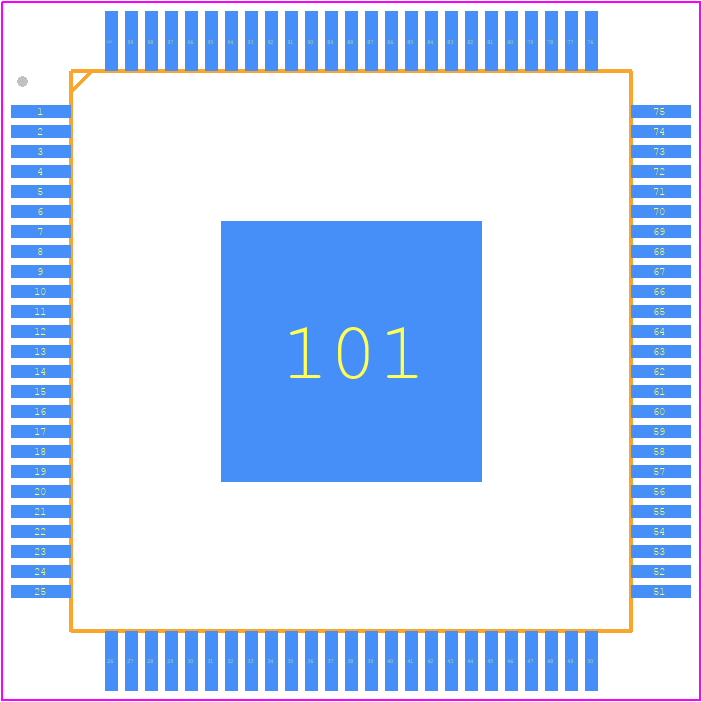

• Part Package Code:

  TQFP

• Package Description:

  TQFP-100

• Pin Count:

  100

• Manufacturer Package Code:

  PNG100

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Applications:

  ATM;SDH;SONET

• JESD-30 Code:

  S-PQFP-G100

• Length:

  14 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  100

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HLFQFP

• Package Equivalence Code:

  QFP100,.63SQ,20

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  1.6 mm

• Supply Current-Max:

  528 mA

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Telecom IC Type:

  ATM/SONET/SDH SUPPORT CIRCUIT

• Terminal Finish:

  Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Width:

  14 mm
