The recommended torque for the screw terminals is typically between 0.5 to 1.5 in-lbs (0.056 to 0.169 Nm), but it's best to consult the manufacturer's application notes or contact their technical support for specific guidance.
Yes, Mill-Max connectors are designed to withstand vibration and shock. However, the specific 830-10-006-10-004000 model is rated for 10G vibration and 100G shock according to IEC 60068-2-6 and IEC 60068-2-27 standards, respectively. Consult the datasheet or manufacturer's documentation for more information.
The 830-10-006-10-004000 connector has a rated operating temperature range of -55°C to +125°C. However, the temperature rating may vary depending on the specific application and environment. It's recommended to consult the manufacturer's documentation or contact their technical support for guidance on high-temperature applications.
Yes, Mill-Max connectors are designed to be compatible with automated assembly and inspection processes. The 830-10-006-10-004000 model features a compact design and well-defined lead geometry, making it suitable for automated assembly and inspection. However, it's recommended to consult with the manufacturer or a qualified engineer to ensure compatibility with specific automation equipment and processes.
The recommended wire size for the 830-10-006-10-004000 connector is 24-30 AWG (0.2-0.05 mm²). The connector is suitable for use with stranded or solid wire, but it's recommended to consult the manufacturer's documentation or contact their technical support for specific guidance on wire type and size selection.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
830-10-006-10-004000 Overview

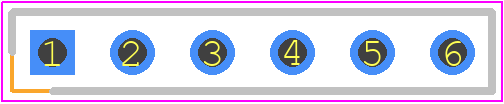

Use the download button to access the 830-10-006-10-004000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 830-1,
or try a keyword search, such as Headers and Edge Type Connectors
