83026AMILF - Renesas Electronics

Description: The 83026I is a low skew, 1-to-2 Differential-to- LVCMOS/LVTTL Fanout Buffer and a member of the family of High Performance Clock Solutions from IDT.The differential input can accept most differential signal types (LVDS, LVHSTL, LVPECL, SSTL, and HCSL) and translate to two single-ended LVCMOS/LVTTL outputs with a maximum output skew of 20ps. The small 8-lead SOIC footprint makes this device ideal for use in applications with limited board space.

Download 83026AMILF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

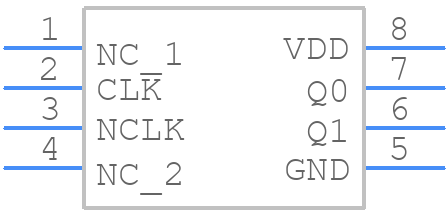

83026AMILF - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
83026AMILF - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - (8-pin SOIC, 150 Mil. Body)
click to zoom
3D Models
83026AMILF - Renesas Electronics - 3D model - Small Outline Packages - (8-pin SOIC, 150 Mil. Body)
click to zoom

83026AMILF Details

  • Manufacturer Part Number:

    83026AMILF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Manufacturer Package Code:

    DCG8

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • JESD-609 Code:

    e3

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    TIN

83026AMILF Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 83026AMILF is -40°C to 125°C.
  • The 83026AMILF has a built-in POR and BOR circuit. The POR is triggered when the power supply voltage (VCC) rises above 1.9V, and the BOR is triggered when VCC falls below 1.7V. Ensure that your design takes these thresholds into account to ensure proper reset functionality.
  • The 83026AMILF supports a maximum clock frequency of 32 MHz.
  • The 83026AMILF's flash memory can be configured using the Flash Memory Controller (FMC). The FMC provides a set of registers to control the flash memory, including programming, erasing, and reading. Refer to the datasheet for specific register settings and programming guidelines.
  • The LVD is a built-in circuit that detects when the power supply voltage (VCC) falls below a certain threshold (typically 2.2V). When the LVD is triggered, it generates a reset signal to prevent the microcontroller from operating in an unstable voltage range.
