83052AGI-01LF - Renesas Electronics

Description: The 83052I-01 is a 2-bit, 2:1, Single-ended Multiplexer and a member of the family of High Performance Clock Solutions from IDT. The 83052I-01 has two selectable single-ended clock inputs and two single-ended clock outputs. The output has a VDDO pin which may be set at 3.3V, 2.5V, or 1.8V, making the device ideal for use in voltage translation applications. An output enable pin places the output in a high impedance state which may be useful for testing or debug. Possible applications include systems with up

Download 83052AGI-01LF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

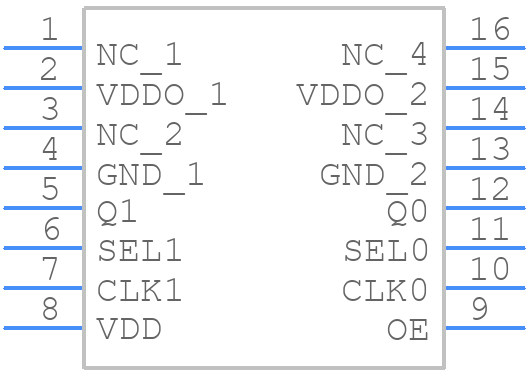

83052AGI-01LF - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
83052AGI-01LF - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PCG16_1
click to zoom
3D Models
83052AGI-01LF - Renesas Electronics - 3D model - Small Outline Packages - PCG16_1
click to zoom

83052AGI-01LF Details

  • Manufacturer Part Number:

    83052AGI-01LF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    PGG16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Additional Feature:

    ALSO OPERATE AT 3.3V SUPPLY

  • Family:

    83052

  • Input Conditioning:

    MUX

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Number of True Outputs:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    40 mA

  • Prop. Delay@Nom-Sup:

    4.2 ns

  • Propagation Delay (tpd):

    4.2 ns

  • Same Edge Skew-Max (tskwd):

    0.1 ns

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    2.625 V

  • Supply Voltage-Min (Vsup):

    2.375 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

  • fmax-Min:

    250 MHz

83052AGI-01LF Frequently Asked Questions (FAQs)

  • Renesas provides a reference design guide for the 83052AGI-01LF, which includes recommended PCB layout and thermal management guidelines. It's essential to follow these guidelines to ensure optimal performance, thermal dissipation, and signal integrity.
  • Renesas recommends using a power management IC (PMIC) specifically designed for the 83052AGI-01LF. The PMIC should provide voltage regulation, power sequencing, and monitoring capabilities. Renesas also provides a power management design guide to help with implementation.
  • The 83052AGI-01LF is rated for operation in the industrial temperature range (-40°C to 85°C). It's recommended to operate the device within the specified temperature range and to follow the guidelines for humidity and vibration testing outlined in the datasheet and relevant industry standards.
  • Renesas provides guidelines for EMC and EMI compliance in the datasheet and application notes. It's essential to follow these guidelines, use proper shielding, and implement filtering and decoupling techniques to ensure compliance with relevant industry standards.
  • Renesas recommends following the testing and validation procedures outlined in the datasheet and application notes. This includes functional testing, performance testing, and environmental testing to ensure the device meets the required specifications and standards.
