Description:The 830584I is a low skew, general purpose PCI-X 1-to-4 Fanout Buffer and a member of the family of High Performance Clock Solutions from IDT. Guaranteed output and partto- part skew characteristics make the 830584I ideal for those clock distribution applications demanding well defined performance and repeatability. The 830584I is designed and characterized from -40°C to 85°C for industrial applications and is packaged in an 8 TSSOP package.
Renesas provides a recommended PCB layout guide in their application note (APN) documents, which can be found on their website. The guide includes thermal vias, copper pours, and other layout considerations to ensure optimal thermal performance.
Renesas recommends following the power sequencing guidelines outlined in their datasheet and application notes. Typically, this involves powering up the VCC and VCCIO pins first, followed by the VREF pin, and then the input signals. A specific power sequencing diagram can be found in the datasheet.
While the datasheet specifies an operating temperature range of -40°C to 125°C, it's essential to note that the device's performance and reliability may degrade at extreme temperatures. Renesas recommends consulting their application notes and thermal design guides for more information on temperature-related considerations.
The 830584AGILF is not specifically designed for radiation-hardened or high-reliability applications. However, Renesas offers other products that are designed for such applications. Engineers should consult Renesas' product portfolio and radiation-hardened product lines for suitable alternatives.
Renesas recommends following the soldering guidelines outlined in their datasheet and application notes. Typically, this involves using a reflow soldering process with a peak temperature of 260°C and a dwell time of 30 seconds. Engineers should also ensure that the PCB is designed with soldering considerations in mind.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
830584AGILF Overview

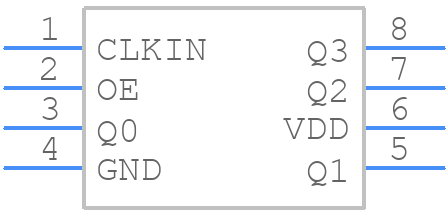

Use the download button to access the 830584AGILF schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 83058,
or try a keyword search, such as Clock Drivers
