8305AGLF - Renesas Electronics

Description: The 8305 is a low skew, 1-to-4, Differential/ LVCMOS-to-LVCMOS/LVTTL Fanout Buffer and a member of the family of High Performance Clock Solutions from IDT. The 8305 has selectable clock inputs that accept either differential or single ended input levels. The clock enable is internally synchronized to eliminate runt pulses on the outputs during asynchronous assertion/deassertion of the clock enable pin. Outputs are forced LOW when the clock is disabled. A separate output enable pin controls whether the outpu

Download 8305AGLF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

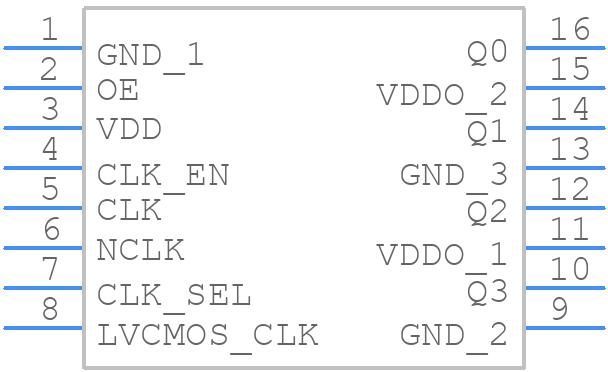

8305AGLF - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
8305AGLF - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PGG16-1
click to zoom
3D Models
8305AGLF - Renesas Electronics - 3D model - Small Outline Packages - PGG16-1
click to zoom

8305AGLF Details

  • Manufacturer Part Number:

    8305AGLF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    PGG16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Family:

    8305

  • Input Conditioning:

    DIFFERENTIAL MUX

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Number of True Outputs:

    4

  • Operating Temperature-Max:

    70 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    21 mA

  • Prop. Delay@Nom-Sup:

    4 ns

  • Propagation Delay (tpd):

    4 ns

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.035 ns

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    3.465 V

  • Supply Voltage-Min (Vsup):

    3.135 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

  • fmax-Min:

    350 MHz

8305AGLF Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 8305AGLF is -40°C to +85°C.
  • To ensure reliable communication, make sure to follow the I2C bus specifications, use proper pull-up resistors, and ensure that the clock frequency is within the recommended range.
  • The maximum current that the 8305AGLF can sink or source on its I/O pins is 4mA.
  • Implement error detection and correction mechanisms, such as checksums or CRC, and use the 8305AGLF's built-in error detection features, such as parity checking.
  • Yes, the 8305AGLF supports multi-master I2C bus configurations, but ensure that each master has a unique address and follows the I2C bus arbitration rules.
