8308AGILF - Renesas Electronics

Description: The 8308I is a low-skew, 1-to-8 Fanout Buffer. The 8308I has two selectable clock inputs. The CLK, nCLK pair can accept most differential input levels. The LVCMOS_CLK can accept LVCMOS or LVTTL input levels. The low impedance LVCMOS/ LVTTL outputs are designed to drive 50? series or parallel terminated transmission lines. The effective fanout can be increased from 8 to 16 by utilizing the ability of the outputs to drive two series terminated transmission lines. The 8308I is characterized for 3.3V core/3.3V

Download 8308AGILF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

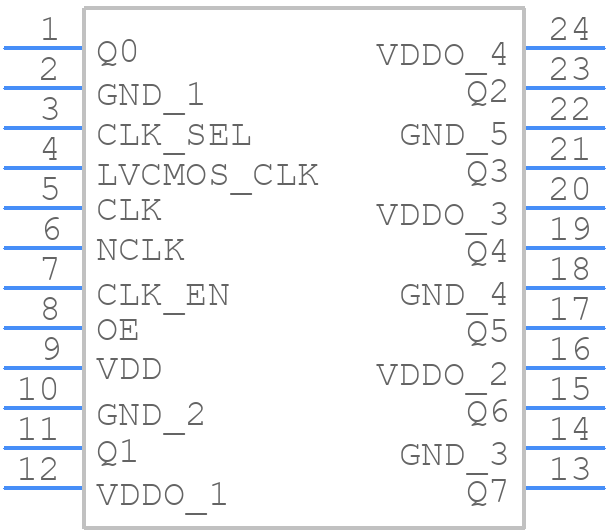

8308AGILF - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
8308AGILF - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PGG24*-1
click to zoom
3D Models
8308AGILF - Renesas Electronics - 3D model - Small Outline Packages - PGG24*-1
click to zoom

8308AGILF Details

  • Manufacturer Part Number:

    8308AGILF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    PGG24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • JESD-609 Code:

    e3

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Terminal Finish:

    Tin (Sn)

8308AGILF Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 8308AGILF is -40°C to +85°C.
  • To configure the 8308AGILF for low-power mode, set the PWRDN pin high and ensure that the VCC pin is connected to a power source. Additionally, reduce the clock frequency and disable any unused peripherals to minimize power consumption.
  • The maximum clock frequency supported by the 8308AGILF is 100 MHz.
  • To implement a watchdog timer on the 8308AGILF, use the built-in watchdog timer (WDT) module. Configure the WDT clock source, timeout period, and enable the WDT interrupt. The WDT will reset the device if the timer expires without being reset.
  • Yes, the 8308AGILF can operate with a 3.3V power supply. However, ensure that the VCC pin is connected to a stable 3.3V power source, and that the input voltage is within the recommended operating range.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

8308AGILF Overview

Use the download button to access the 8308AGILF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 8308A, or try a keyword search, such as Clock Drivers
