830M1-0100-TRAY-PACKAGED - TE Connectivity

Description: Body Features: Product Weight .12 OZ | Primary Product Material Ceramic | Product Weight 1 G | Number of Sensing Axes Triaxial | Electrical Characteristics: Full Scale Output Voltage ±1.25 VDC | Excitation Voltage 2.8 – 5.5 VDC | Industry Standards: IP Rating IP68 | Mechanical Attachment: Mounting Type Solder | Other: Acceleration Range (±) 100 GFORCE | Sensitivity 12.5 MVG | Overall Acceleration Range (±) 100 GFORCE | Nonlinearity ±2 PCTFSO | Sensitivity Range 12.5 MVG | Product Type Features: Output

Download 830M1-0100-TRAY-PACKAGED Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

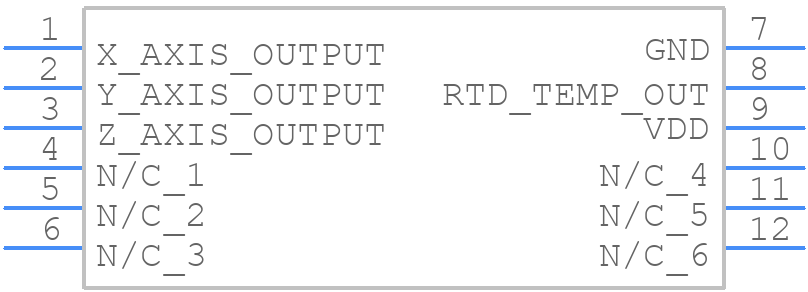

Symbol
830M1-0100-TRAY-PACKAGED - TE Connectivity - PCB symbol
click to zoom

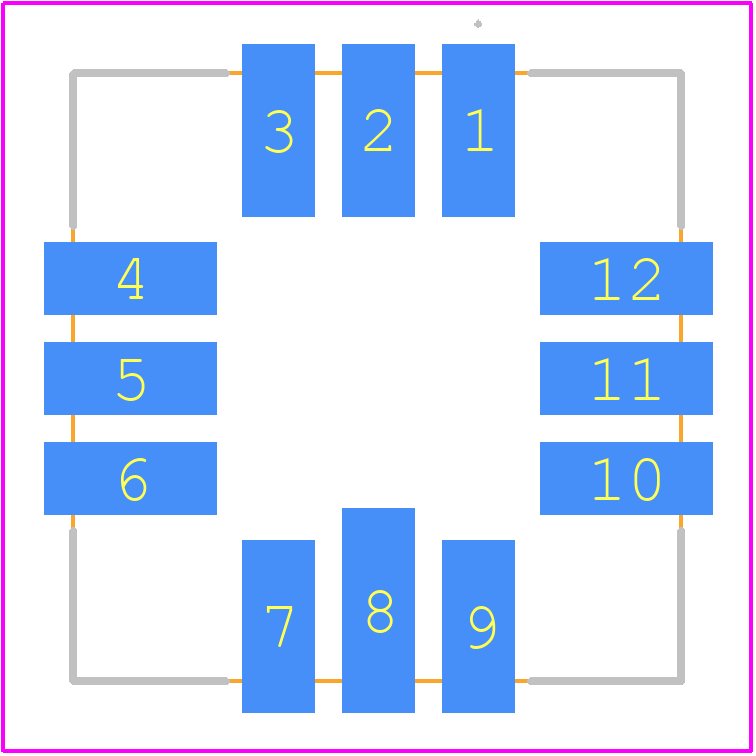

PCB Footprints
830M1-0100-TRAY-PACKAGED - TE Connectivity PCB footprint - Other - Other - 830M1-0100-TRAY-PACKAGED-1
click to zoom
3D Models
830M1-0100-TRAY-PACKAGED - TE Connectivity - 3D model - Other - 830M1-0100-TRAY-PACKAGED-1
click to zoom

830M1-0100-TRAY-PACKAGED Details

  • Manufacturer Part Number:

    830M1-0100-TRAY-PACKAGED

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    TE Connectivity

  • Sensors/Transducers Type:

    VIBRATION SENSOR

830M1-0100-TRAY-PACKAGED Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow the recommended torque value to ensure reliable connections and prevent damage to the connector.
  • Yes, the 830M1-0100-TRAY-PACKAGED connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as industrial automation, transportation, and aerospace.
  • The 830M1-0100-TRAY-PACKAGED connector has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's essential to ensure proper sealing and protection when using the connector in outdoor environments.
  • The 830M1-0100-TRAY-PACKAGED connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
  • Yes, the 830M1-0100-TRAY-PACKAGED connector is designed to be compatible with other TE Connectivity products, such as cable assemblies and PCB connectors. It's essential to ensure compatibility before using the connector with other products.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

830M1-0100-TRAY-PACKAGED Overview

Use the download button to access the 830M1-0100-TRAY-PACKAGED schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 830M1, or try a keyword search, such as Other Sensors/Transducers

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
