831-3623 - Wago

Description: THT male header; 1.0 x 1.2 mm solder pin; angled; 100% protected against mismating; Pin spacing 7.62 mm; 3-pole

Download 831-3623 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
831-3623 - Wago - PCB symbol
click to zoom
PCB Footprints

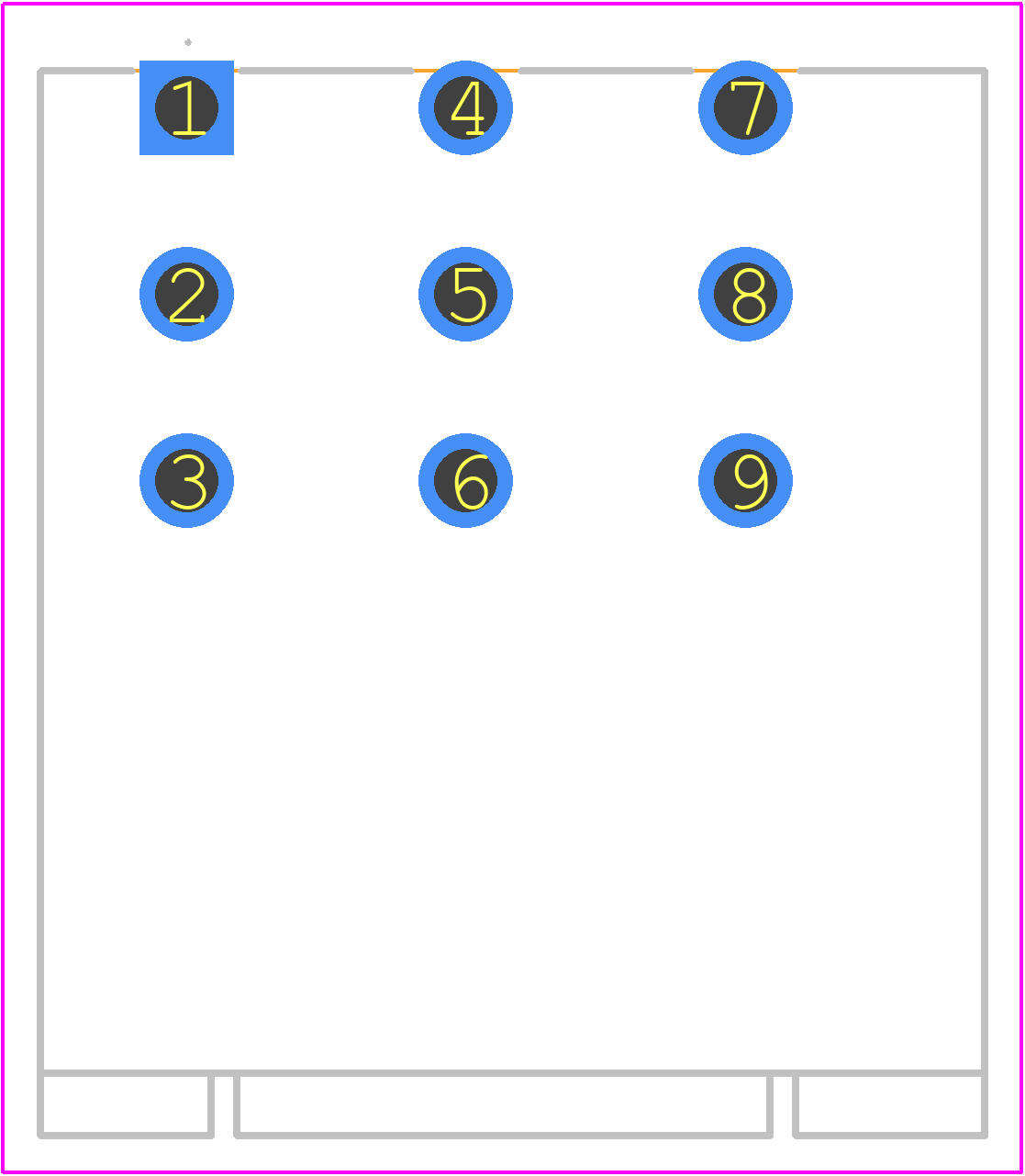

831-3623 - Wago PCB footprint - Other - Other - 831-3623-1
click to zoom
3D Models
831-3623 - Wago - 3D model - Other - 831-3623-1
click to zoom

831-3623 Details

  • Manufacturer Part Number:

    831-3623

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    3

  • Rated Current:

    50 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

831-3623 Frequently Asked Questions (FAQs)

  • The recommended torque for screw terminals is 0.6 Nm to 1.2 Nm (5 in-lbs to 10 in-lbs) to ensure reliable connections.
  • Yes, the 831-3623 connector is designed to withstand high-vibration environments, making it suitable for use in industrial, transportation, and other applications where vibration is a concern.
  • Yes, the 831-3623 connector is rated IP67, which means it is protected against dust and water ingress, making it suitable for outdoor use in harsh environments.
  • Yes, the 831-3623 connector is designed to accept stranded wire, but it's recommended to use a ferrule or wire end sleeve to ensure reliable connections.
  • The operating temperature range for the 831-3623 connector is -40°C to 125°C (-40°F to 257°F), making it suitable for use in a wide range of applications.
