Description:The 831724I is a high-performance, differential HCSL clock/data multiplexer and fanout buffer. The device is designed for the multiplexing and fanout of high-frequency clock and data signals. The device has two differential, selectable clock/data inputs. The selected input signal is distributed to four low-skew differential HCSL outputs. Each input pair accepts HCSL, LVDS, LVPECL and SSTL levels. The 831724I is characterized to operate from a 3.3V power supply. Guaranteed input, output-to-output and part-to
A 4-layer PCB with a solid ground plane and thermal vias is recommended to ensure optimal thermal performance. Additionally, placing thermal pads under the package can help to dissipate heat more efficiently.
To ensure reliable communication, make sure to follow the recommended bus termination and pull-up resistor values, and implement proper signal routing and shielding to minimize electromagnetic interference (EMI).
The 831724AKILF requires a specific power sequencing order to prevent damage. The recommended sequence is to power up the VCCIO pin first, followed by the VCC core voltage, and then the analog voltage (VCCA).
The 831724AKILF has multiple power modes, including sleep, standby, and shutdown. To minimize power consumption, use the lowest power mode necessary for your application, and consider using dynamic voltage and frequency scaling (DVFS) to optimize power consumption.
To prevent electrostatic discharge (ESD) damage, use ESD protection devices such as TVS diodes or ESD arrays on the I/O lines, and follow proper handling and storage procedures to minimize the risk of ESD damage.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
831724AKILF Overview

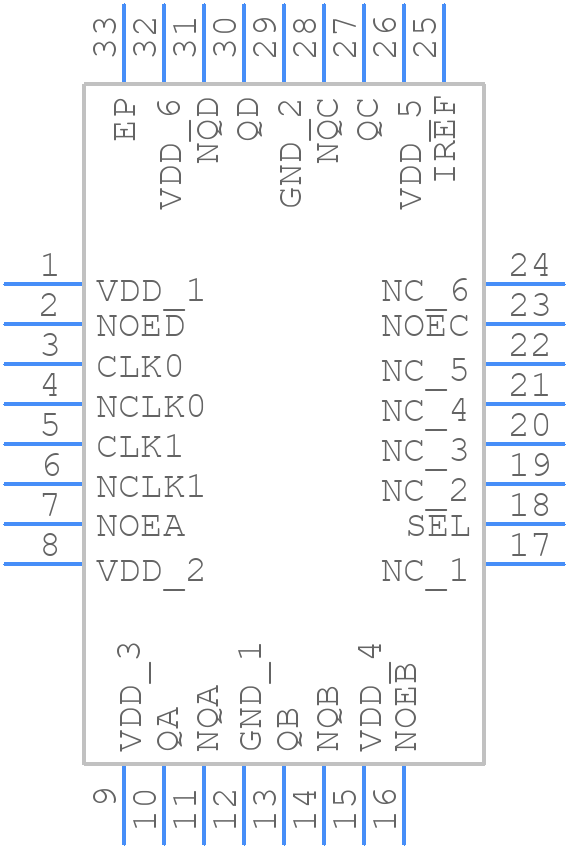

Use the download button to access the 831724AKILF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 83172,
or try a keyword search, such as Clock Drivers
