Description:The 831724I is a high-performance, differential HCSL clock/data multiplexer and fanout buffer. The device is designed for the multiplexing and fanout of high-frequency clock and data signals. The device has two differential, selectable clock/data inputs. The selected input signal is distributed to four low-skew differential HCSL outputs. Each input pair accepts HCSL, LVDS, LVPECL and SSTL levels. The 831724I is characterized to operate from a 3.3V power supply. Guaranteed input, output-to-output and part-to
Renesas provides a recommended PCB layout guide in their application note (APN) documents, which can be found on their website. The guide includes thermal vias, copper pours, and other layout considerations to ensure optimal thermal performance.
Renesas recommends using an external overcurrent protection circuit, such as a fuse or a dedicated overcurrent protection IC, to prevent damage to the device. The datasheet provides guidelines for selecting the appropriate overcurrent protection component.
Renesas provides a recommended soldering profile in their packaging and assembly guidelines document, which can be found on their website. The profile includes temperature and time recommendations for reflow soldering and wave soldering.
Renesas provides a troubleshooting guide in their application note (APN) documents, which can be found on their website. The guide includes steps to identify and resolve common issues, as well as contact information for Renesas support teams.
Yes, Renesas provides guidelines for EMI/EMC design considerations in their application note (APN) documents, which can be found on their website. The guidelines include recommendations for PCB layout, shielding, and filtering to minimize EMI/EMC issues.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
831724AKILFT Overview

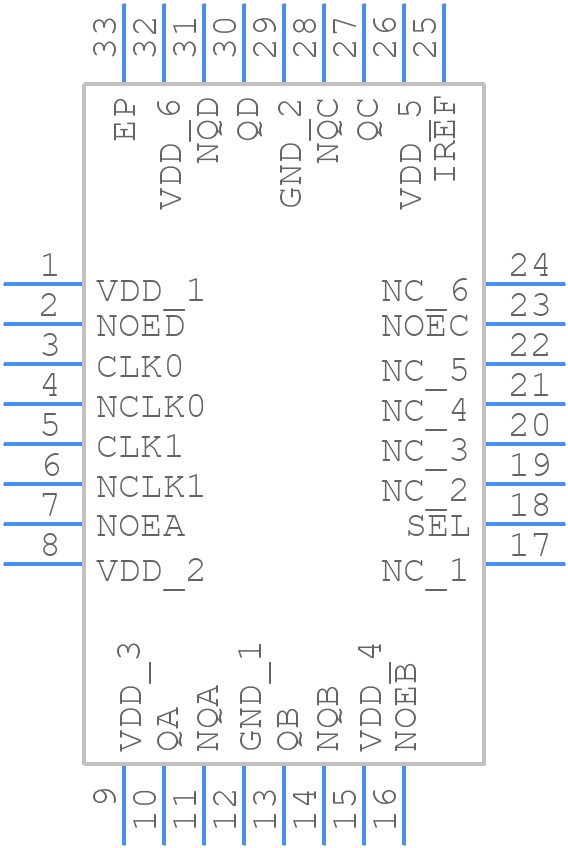

Use the download button to access the 831724AKILFT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 83172,
or try a keyword search, such as Clock Drivers
