Description:The 831742I is a high-performance, differential HCSL clock/data multiplexer and fanout buffer. The device is designed for the multiplexing and fanout of high-frequency clock and data signals. The device has four differential, selectable clock/data inputs. The selected input signal is distributed to two low-skew differential HCSL outputs. Each input pair accepts HCSL, LVDS, LVPECL and SSTL levels. The 831742I is characterized to operate from a 3.3V power supply. Guaranteed input, output-to-output and part-to
Renesas provides a recommended PCB layout guide in their application note (APN) documents, which can be found on their website. The guide includes thermal vias, heat sink recommendations, and PCB layer stack-up suggestions to ensure optimal thermal performance.
Renesas recommends a specific power sequencing scheme to ensure proper device operation. This information can be found in the device's user manual or application notes. Typically, the sequence involves powering up the core voltage (VCC) before the input/output voltage (VIO).
Renesas recommends using high-quality, low-ESR decoupling capacitors with a value of 0.1 μF to 1 μF, placed as close as possible to the device's power pins. The exact capacitor values and placement can be found in the device's datasheet or application notes.
Renesas provides a JTAG troubleshooting guide in their application notes, which covers common issues such as signal integrity, clock frequency, and voltage level problems. Additionally, Renesas offers a JTAG debugger tool that can help identify and resolve issues.
The maximum operating temperature range for the 831742AGILF is typically specified in the datasheet as -40°C to +125°C (junction temperature). However, it's essential to check the specific datasheet or product documentation for the exact temperature range, as it may vary depending on the package and grade.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
831742AGILF Overview

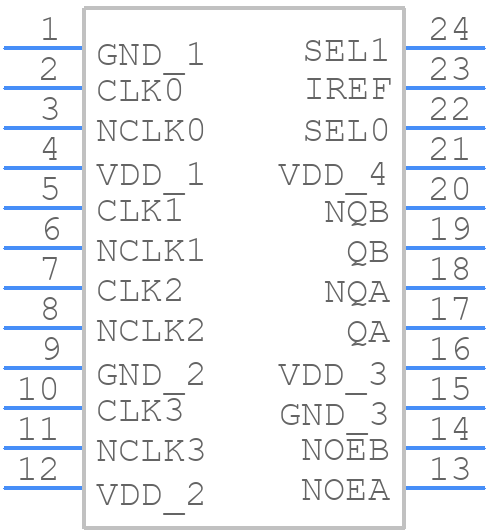

Use the download button to access the 831742AGILF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 83174,
or try a keyword search, such as Clock Drivers
