832-3624 - Wago

Description: THT male header; 1.2 x 1.2 mm solder pin; angled; 100% protected against mismating; Silver-plated contacts; Pin spacing 10.16 mm; 4-pole

Download 832-3624 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

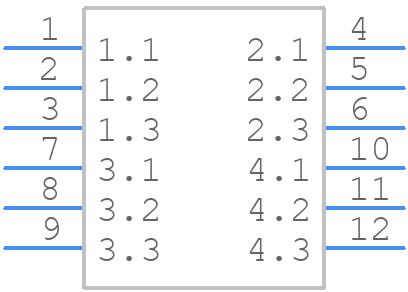

832-3624 - Wago - PCB symbol
click to zoom
PCB Footprints

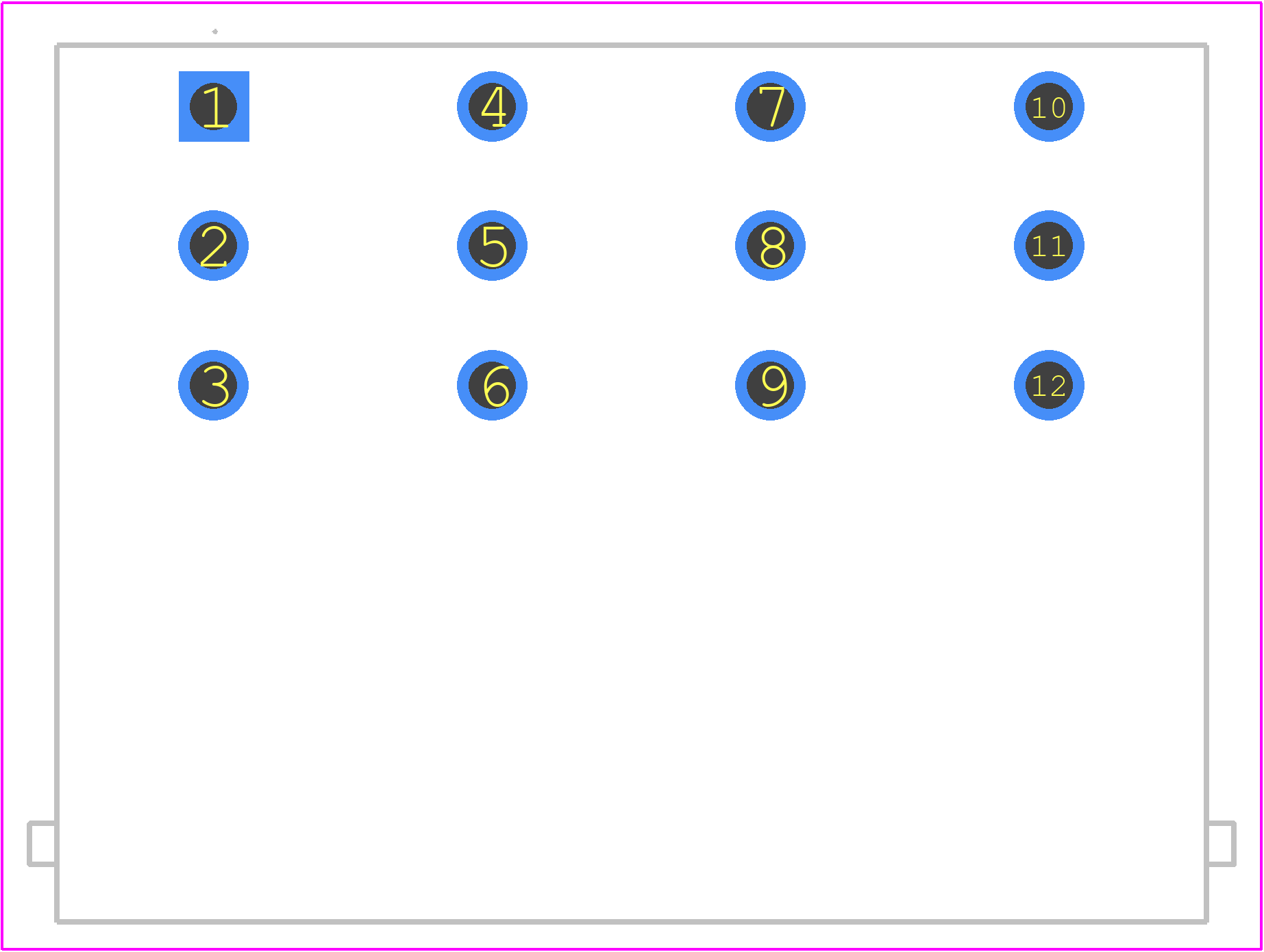

832-3624 - Wago PCB footprint - Other - Other - 832-3624-1
click to zoom
3D Models
832-3624 - Wago - 3D model - Other - 832-3624-1
click to zoom

832-3624 Details

  • Manufacturer Part Number:

    832-3624

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

832-3624 Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the 832-3624 connector is 0.6 Nm to 1.2 Nm (5 in-lbs to 10 in-lbs).
  • Yes, the 832-3624 connector is suitable for outdoor use, as it has a IP67 rating, which means it is protected against dust and water ingress.
  • Yes, the 832-3624 connector is designed to withstand high-vibration applications, with a vibration resistance of up to 10g.
  • The operating temperature range of the 832-3624 connector is -40°C to 125°C (-40°F to 257°F).
  • Yes, the 832-3624 connector meets the requirements of UL 1977 and CSA 22.2 No. 182.1 standards.
