832-AG11D-LF - TE Connectivity

Description: Conn DIP Socket SKT 32 POS 2.54mm Solder ST Thru-Hole Tube

Download 832-AG11D-LF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

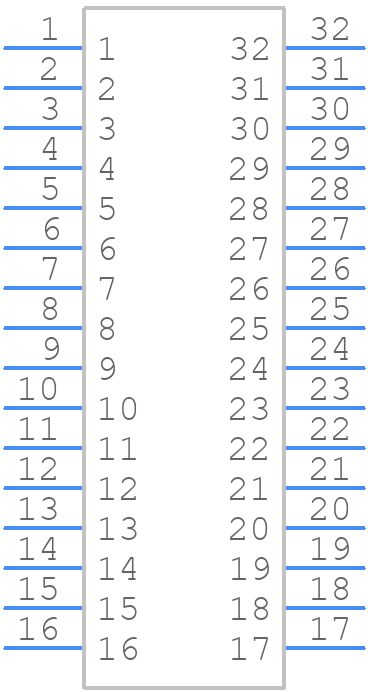

Symbol
832-AG11D-LF - TE Connectivity - PCB symbol
click to zoom

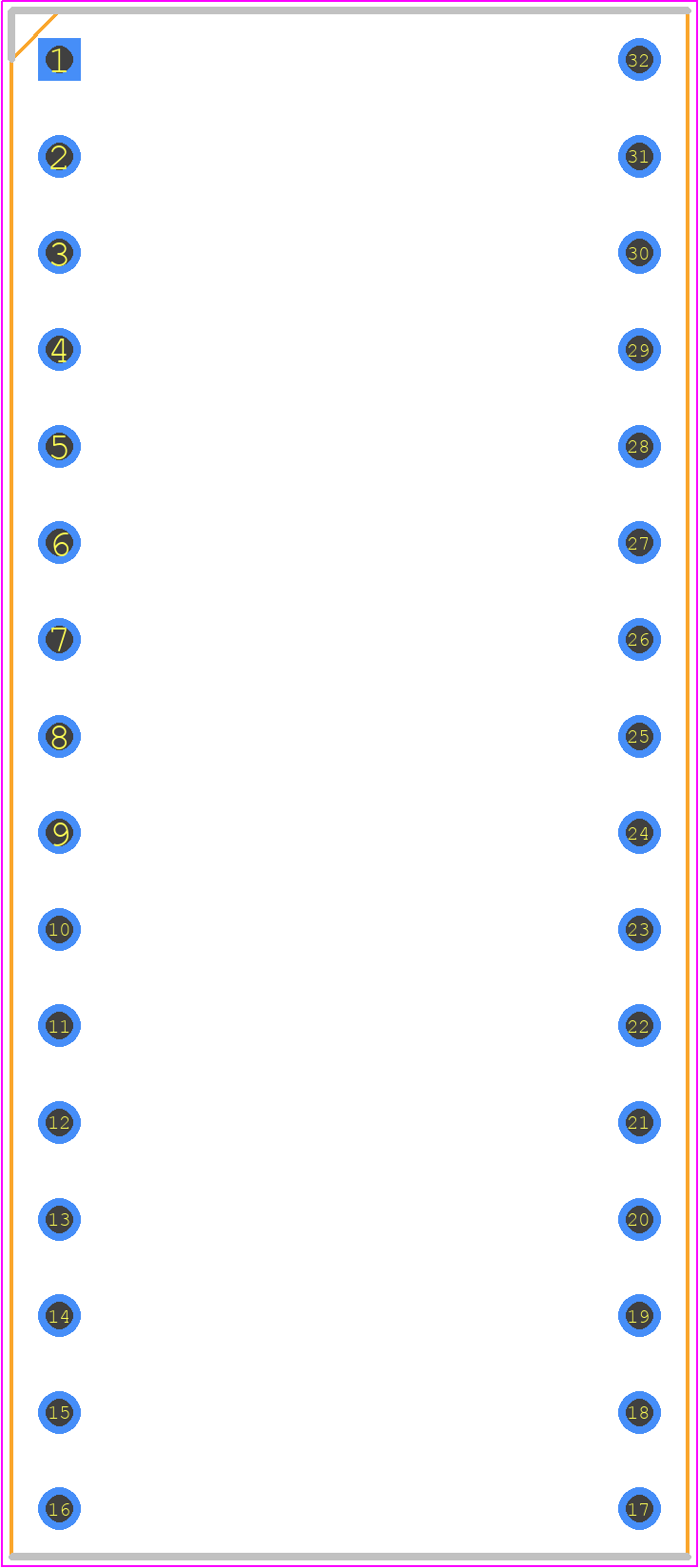

PCB Footprints
832-AG11D-LF - TE Connectivity PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 832-AG11D-ESL-LF
click to zoom

832-AG11D-LF Details

  • Manufacturer Part Number:

    832-AG11D-LF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Additional Feature:

    STANDARD: UL 94V-0

  • Body Breadth:

    0.7 inch

  • Body Depth:

    0.105 inch

  • Body Length:

    1.6 inch

  • Contact Finish Mating:

    AU ON NI

  • Contact Finish Termination:

    TIN OVER NICKEL

  • Contact Material:

    BE-CU

  • Contact Style:

    RND PIN-SKT

  • Current Rating:

    3 A

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    DIP32

  • Dielectric Withstanding Voltage:

    1000VAC V

  • Housing Material:

    THERMOPLASTIC

  • Insulation Resistance:

    5000000000 Ω

  • Mating Contact Pitch:

    0.1 inch

  • Mounting Style:

    STRAIGHT

  • Number of Contacts:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    0.6000000000000001 mm

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

832-AG11D-LF Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 832-AG11D-LF connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as rail, industrial, and automotive.
  • While the datasheet specifies AWG 24-18 wire sizes, the connector can accommodate other wire sizes with some limitations. However, it's essential to consult with TE Connectivity or a qualified engineer to determine the feasibility of using alternative wire sizes and to ensure reliable connections.
  • The 832-AG11D-LF connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F), making it suitable for use in a wide range of applications, including those with extreme temperature fluctuations.
  • Yes, the 832-AG11D-LF connector is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the requirements for environmentally friendly and safe use in various industries.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

832-AG11D-LF Overview

Use the download button to access the 832-AG11D-LF schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 832-A, or try a keyword search, such as Sockets and Chip Carriers

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
