Description:The 83210 is a low skew, 1-to-10 HSTL Fanout Buffer. The class II HSTL outputs are balanced push-pull in design, capable of delivering 16mA into a 10pF load. This class allows both source series termination and symmetrically double parallel termination.
Renesas provides a recommended PCB layout guide in their application note (APL-AN-1201) which includes thermal design considerations, such as thermal vias, copper pours, and component placement, to ensure optimal thermal performance.
Renesas recommends a specific power sequencing scheme in their application note (APL-AN-1202) to ensure proper device operation. The sequence involves powering up the VCC, then the VDD, and finally the AVCC, with a specific delay between each power-up event.
Renesas recommends using 0.1uF to 1uF decoupling capacitors with a voltage rating of 10V or higher, placed as close as possible to the power pins of the device. The capacitors should be rated for high-frequency operation and have a low equivalent series resistance (ESR).
Renesas provides a JTAG interface specification in their application note (APL-AN-1203) which includes guidelines for production testing, such as signal voltage levels, clock frequency, and boundary scan implementation.
The thermal resistance values for the 83210AYLF package are not explicitly stated in the datasheet, but can be found in the Renesas package thermal resistance document (Renesas Document No. R01DS0243EJ0100). The values are: RθJA = 35°C/W, RθJC = 10°C/W, and ψJT = 20°C/W.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
83210AYLF Overview

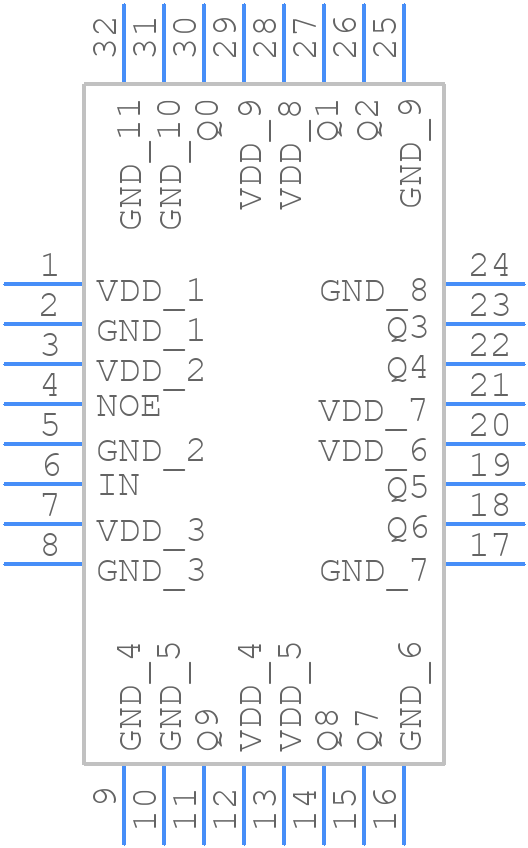

Use the download button to access the 83210AYLF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 83210,
or try a keyword search, such as Clock Drivers
