The recommended torque for the screw terminals is 0.5-1.5 in-lbs (0.056-0.169 Nm) to ensure secure connections without damaging the terminals.
Yes, the 836-22-005-30-001101 connectors are designed to withstand high-vibration environments, making them suitable for applications such as aerospace, automotive, and industrial equipment.
Yes, the connectors are rated for operation in temperatures ranging from -55°C to 150°C and can withstand humidity up to 95% RH. However, it's essential to follow proper installation and sealing procedures to ensure reliable performance.
Yes, the 836-22-005-30-001101 connectors are designed for automated assembly and inspection, with features such as pick-and-place compatibility and visual inspection markers.
The typical lead time for delivery varies depending on the quantity and availability. However, Mill-Max Mfg Corp typically offers a lead time of 6-8 weeks for standard orders. The minimum order quantity is usually 1,000 pieces, but this may vary depending on the specific product and production schedule.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
836-22-005-30-001101 Overview

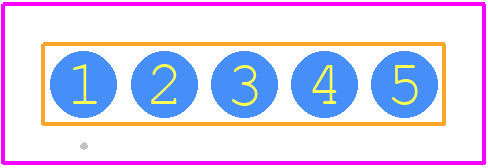

Use the download button to access the 836-22-005-30-001101 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 836-2,
or try a keyword search, such as Headers and Edge Type Connectors
