83905AKLF - Renesas Electronics

Description: The 83905 is a low skew, 1-to-6 LVCMOS / LVTTL Fanout Buffer. The low impedance LVCMOS/LVTTL outputs are designed to drive 50Ω series or parallel terminated transmission lines. The effective fanout can be increased from 6 to 12 by utilizing the ability of the outputs to drive two series terminated lines. The 83905 is characterized at full 3.3V, 2.5V, and 1.8V, mixed 3.3V/2.5V, 3.3V/1.8V and 2.5V/1.8V output operating supply mode. Guaranteed output and part-to-part skew characteristics along with the 1.8V ou

Download 83905AKLF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

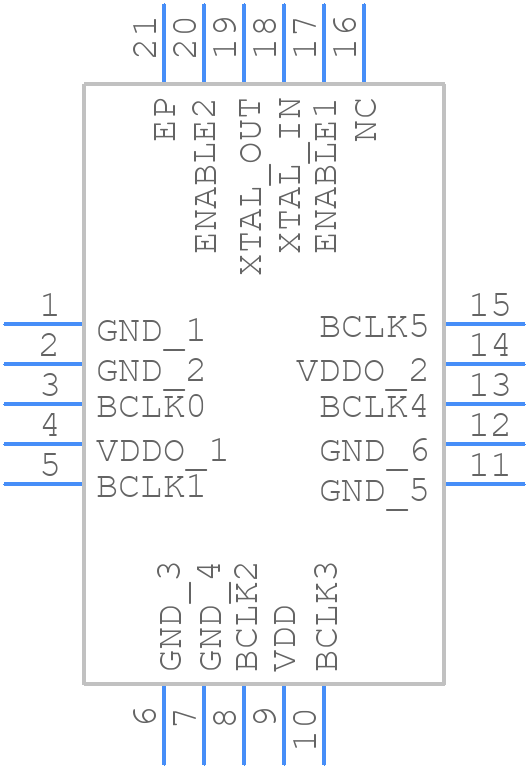

83905AKLF - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
83905AKLF - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 20-VFQFPN, 4X4X0.9
click to zoom
3D Models
83905AKLF - Renesas Electronics - 3D model - Quad Flat No-Lead - 20-VFQFPN, 4X4X0.9
click to zoom

83905AKLF Details

  • Manufacturer Part Number:

    83905AKLF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    VFQFPN

  • Package Description:

    VFQFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    NLG20P1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Additional Feature:

    ALSO OPERATES AT 2.5 V SUPPLY

  • Family:

    83905

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    S-PQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Max I(ol):

    0.001 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Number of True Outputs:

    6

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TRAY

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    10 mA

  • Same Edge Skew-Max (tskwd):

    0.08 ns

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.465 V

  • Supply Voltage-Min (Vsup):

    3.135 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

  • fmax-Min:

    100 MHz

83905AKLF Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (R01AN2732EU0100) which includes thermal design considerations, such as thermal vias, copper pours, and component placement, to ensure optimal thermal performance.
  • Renesas recommends using an external overcurrent protection circuit, such as a fuse or a dedicated overcurrent protection IC, to prevent damage to the device. The datasheet provides guidelines for selecting the appropriate overcurrent protection component.
  • Renesas recommends a specific power-up sequence to ensure proper device operation. The sequence involves powering up the VCC pin first, followed by the VDD pin, and then the input signals. The datasheet provides a detailed power-up sequence diagram.
  • Renesas provides a troubleshooting guide in their application note (R01AN2732EU0100) which includes steps to identify and resolve common issues, such as power-on reset, clock signal integrity, and output voltage regulation.
  • Renesas recommends considering thermal design factors such as junction-to-ambient thermal resistance, thermal impedance, and maximum operating temperature to ensure reliable device operation. The datasheet provides thermal design guidelines and equations to calculate thermal performance.
