83PR226BKI-01LF - Renesas Electronics

Description: The 83PR226I-01 is a programmable LVPECL synthesizer that is "forward" footprint compatible with standard 5mm x 7mm oscillators. Forward footprint compatibility means that a board designed to accommodate the crystal oscillator interface and the optional control pins is also fully compatible with a canned oscillator footprint - the canned oscillator will drop onto the 10-VFQFN footprint for second sourcing purposes. This capability provides designers with programability and lead time advantages of silicon/cr

Download 83PR226BKI-01LF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

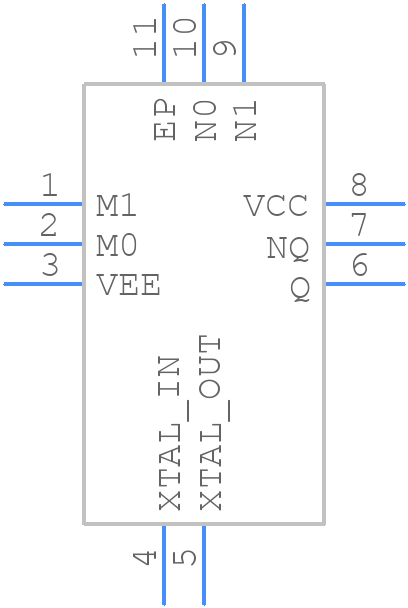

83PR226BKI-01LF - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
83PR226BKI-01LF - Renesas Electronics PCB footprint - Other - Other - 10-VFQFN, lead-free
click to zoom
3D Models
83PR226BKI-01LF - Renesas Electronics - 3D model - Other - 10-VFQFN, lead-free
click to zoom

83PR226BKI-01LF Details

  • Manufacturer Part Number:

    83PR226BKI-01LF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    VFQFPN

  • Pin Count:

    10

  • Manufacturer Package Code:

    NRG10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Additional Feature:

    ALSO OPERATES WITH 3.3V SUPPLY

  • JESD-30 Code:

    R-XQCC-N10

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    213.33 MHz

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC10,.2X.27,100/40

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TRAY

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    32 MHz

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    172 mA

  • Supply Voltage-Max:

    2.625 V

  • Supply Voltage-Min:

    2.375 V

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, PROGRAMMABLE

83PR226BKI-01LF Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (R01AN4461EJ0100) which includes thermal design considerations, such as thermal vias, copper pours, and component placement.
  • Renesas recommends using an external overcurrent protection circuit, such as a current sense resistor and a comparator, to detect overcurrent conditions. The 83PR226BKI-01LF does not have built-in overcurrent protection.
  • The maximum operating temperature range for the 83PR226BKI-01LF is -40°C to 125°C, as specified in the datasheet. However, it's essential to consider the thermal design and heat dissipation to ensure reliable operation within this range.
  • The 83PR226BKI-01LF is rated for a maximum voltage of 5.5V. While it can tolerate some voltage transients, it's not designed for high-voltage applications. If you need to operate at higher voltages, consider using a voltage regulator or a different device.
  • Renesas provides EMC guidelines in their application note (R01AN4461EJ0100), which include recommendations for PCB layout, component selection, and shielding to minimize electromagnetic interference (EMI) and ensure EMC compliance.
