840002AGI-01LF - Renesas Electronics

Description: The 840002I-01 is a two output LVCMOS/LVTTL Synthesizer optimized to generate Ethernet reference clock frequencies. Using a 25MHz 18pF parallel resonant crystal, the following frequencies can be generated based on the two frequency select pins (F_SEL[1:0]): 156.25MHz, 125MHz, and 62.5MHz. The 840002I-01 uses IDT's 3RD generation low phase noise VCO technology and can achieve 1ps or lower typical random rms phase jitter, easily meeting Ethernet jitter requirements. The 840002I-01 is packaged in a small 16-pi

Download 840002AGI-01LF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

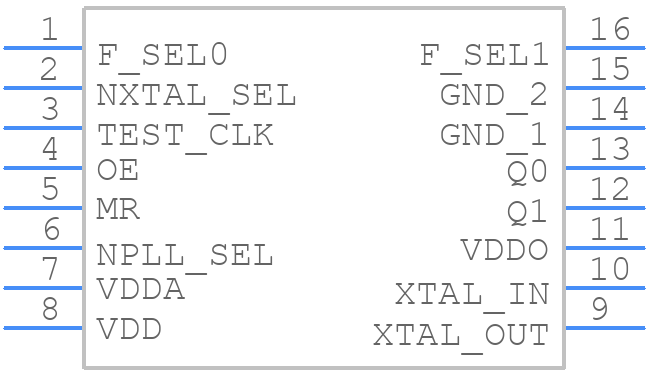

840002AGI-01LF - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
840002AGI-01LF - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - (16-pin TSSOP, 4.40 mm Body, 0.65 mm Pitch)_2021
click to zoom
3D Models
840002AGI-01LF - Renesas Electronics - 3D model - Small Outline Packages - (16-pin TSSOP, 4.40 mm Body, 0.65 mm Pitch)_2021
click to zoom

840002AGI-01LF Details

  • Manufacturer Part Number:

    840002AGI-01LF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Pin Count:

    16

  • Manufacturer Package Code:

    PGG16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    175 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    25 MHz

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    100 mA

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, ETHERNET

840002AGI-01LF Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (R01AN3804EU0100) which includes thermal design considerations, such as thermal vias, copper pours, and component placement, to ensure optimal thermal performance.
  • Renesas recommends a specific power sequencing scheme to ensure proper device operation. This involves powering up the VCC and VCCIO pins simultaneously, followed by the VREF pin. A detailed power sequencing diagram is available in the datasheet.
  • Although the datasheet specifies the recommended operating conditions, it's essential to note that the maximum allowed voltage on the input pins is VCC + 0.3V to prevent damage to the device.
  • Renesas recommends implementing ESD protection measures, such as using ESD diodes or TVS diodes, to protect the device from electrostatic discharge. A detailed ESD protection circuit is available in the application note (R01AN3804EU0100).
  • To ensure proper device operation, Renesas recommends maintaining a clock signal integrity with a minimum rise time of 1ns, a maximum clock skew of 100ps, and a clock duty cycle of 40% to 60%.
