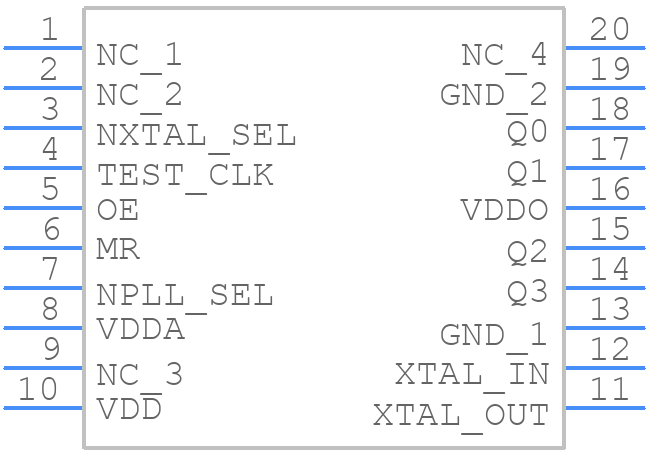

840024BGILF - Renesas Electronics

840024BGILF Details

• Manufacturer Part Number:

  840024BGILF

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  TSSOP

• Package Description:

  TSSOP-20

• Pin Count:

  20

• Manufacturer Package Code:

  PGG20

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Factory Lead Time:

  4 Weeks

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  6.48

• Additional Feature:

  ALSO AVAILABLE IN VQFN-48 PACKAGE WITH 6 OUTPUT, ALSO AVAILABLE IN 3.3 SUPPLY

• JESD-30 Code:

  R-PDSO-G20

• JESD-609 Code:

  e3

• Length:

  6.5 mm

• Moisture Sensitivity Level:

  1

• Number of Terminals:

  20

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Clock Frequency-Max:

  125 MHz

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Equivalence Code:

  TSSOP20,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Primary Clock/Crystal Frequency-Nom:

  25 MHz

• Seated Height-Max:

  1.2 mm

• Supply Current-Max:

  90 mA

• Supply Voltage-Max:

  2.625 V

• Supply Voltage-Min:

  2.375 V

• Supply Voltage-Nom:

  2.5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Finish:

  Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Width:

  4.4 mm

• uPs/uCs/Peripheral ICs Type:

  CLOCK GENERATOR, ETHERNET
