Description:The Intersil 82C84A is a high performance CMOS Clock Generatordriver which is designed to service the requirements of both CMOS and NMOS microprocessors such as the 80C86, 80C88, 8086 and the 8088. The chip contains a crystal controlled oscillator, a divide-bythree counter and complete "Ready" synchronization and reset logic. Static CMOS circuit design permits operation with an external frequency source from DC to 25MHz. Crystal controlled operation to 25MHz is guaranteed with the use of a parallel, fundame
Renesas provides a recommended PCB layout guide in their application note (APN) documents, which can be found on their website. The guide includes thermal vias, copper pours, and component placement recommendations to ensure optimal thermal performance.
Renesas recommends using an external power sequencer or a dedicated power management IC to ensure proper power sequencing. The 8406801VA has a specific power-up sequence requirement, which is detailed in the datasheet. Engineers can also consult Renesas' application notes and design guides for more information.
While the datasheet specifies the recommended operating temperature range, the maximum operating temperature range is typically specified in the device's reliability report or quality and reliability handbook, which can be obtained from Renesas upon request.
Renesas provides a troubleshooting guide for I2C interface issues in their application notes and FAQs. Engineers can also use I2C bus analyzers or logic analyzers to debug the interface. Additionally, Renesas' technical support team can provide assistance with troubleshooting.
Renesas recommends using high-quality, low-ESR decoupling capacitors with a value of 10uF to 22uF, depending on the specific application and operating frequency. The datasheet provides more information on decoupling capacitor selection and placement.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
8406801VA Overview

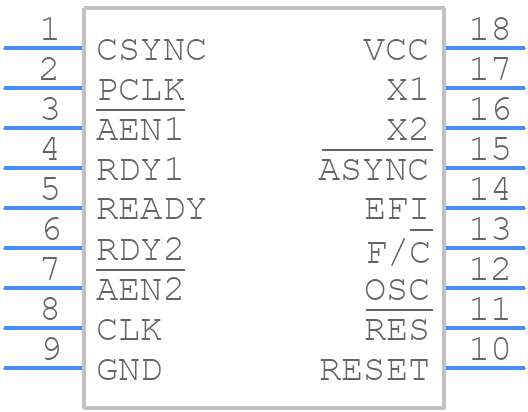

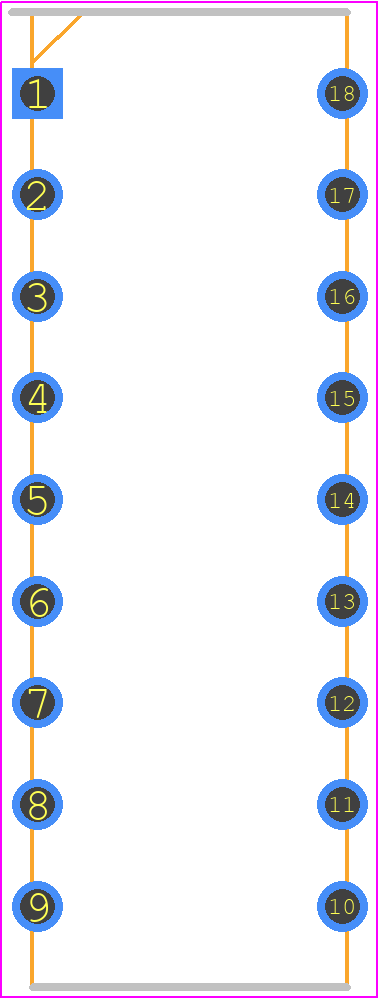

Use the download button to access the 8406801VA schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 84068,
or try a keyword search, such as Clock Generators
