841602AGILFT - Renesas Electronics

Description: The 841602I is an optimized PCIe and sRIO clock generator and member of the family of high-performance clock solutions from IDT. The device uses a 25MHz parallel crystal to generate 100MHz and 125MHz clock signals, replacing solutions requiring multiple oscillator and fanout buffer solutions. The device has excellent phase jitter (< 1ps rms) suitable to clock components requiring precise and low-jitter PCIe or sRIO or both clock signals. Designed for telecom, networking and industrial applications, the 8416

Download 841602AGILFT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

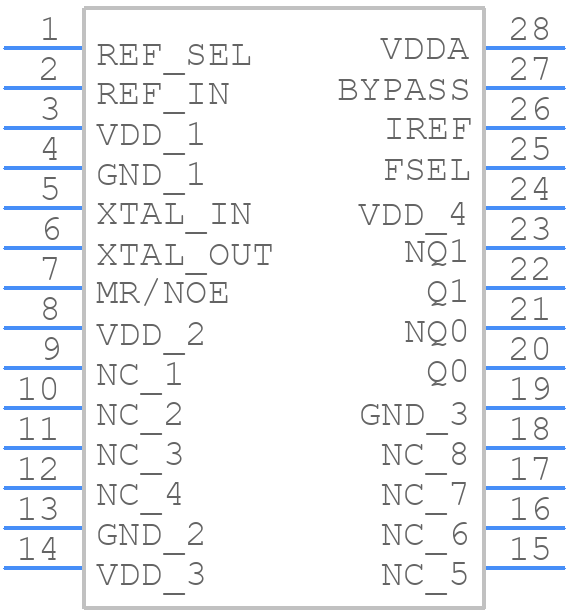

841602AGILFT - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
841602AGILFT - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - DQG28
click to zoom
3D Models
841602AGILFT - Renesas Electronics - 3D model - Small Outline Packages - DQG28
click to zoom

841602AGILFT Details

  • Manufacturer Part Number:

    841602AGILFT

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    DQG28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    125 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    25 MHz

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    87 mA

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    6.1 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, OTHER

841602AGILFT Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide for the 841602AGILFT, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance. Contact Renesas support for more information.
  • The 841602AGILFT has a built-in overcurrent protection feature, but it's recommended to implement an external overcurrent protection circuit to ensure reliable operation. Renesas provides application notes and reference designs for overcurrent protection implementation.
  • The recommended power-up sequence for the 841602AGILFT is to power up the VCC pin first, followed by the VDD pin. This ensures proper device initialization and prevents potential latch-up conditions.
  • Renesas provides a troubleshooting guide for I2C interface issues, which includes steps to check for proper pin connections, clock frequency, and data transmission protocols. Additionally, Renesas recommends using an I2C bus analyzer tool to debug I2C communication issues.
  • The 841602AGILFT has an operating temperature range of -40°C to 125°C, but it's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

841602AGILFT Overview

Use the download button to access the 841602AGILFT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 84160, or try a keyword search, such as Clock Generators
