Part Image

841608AKILF - Renesas Electronics

Description: The 841608I is an optimized PCIe and sRIO clock generator and member of the family of high-performance clock solutions from IDT. The device uses a 25MHz parallel crystal to generate 100MHz and 125MHz clock signals, replacing solutions requiring multiple oscillator and fanout buffer solutions. The device has excellent phase jitter (<1ps rms) suitable for clock components requiring precise and low-jitter PCIe or sRIO or both clock signals. Designed for telecom, networking and industrial applications, the 8416

Download 841608AKILF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

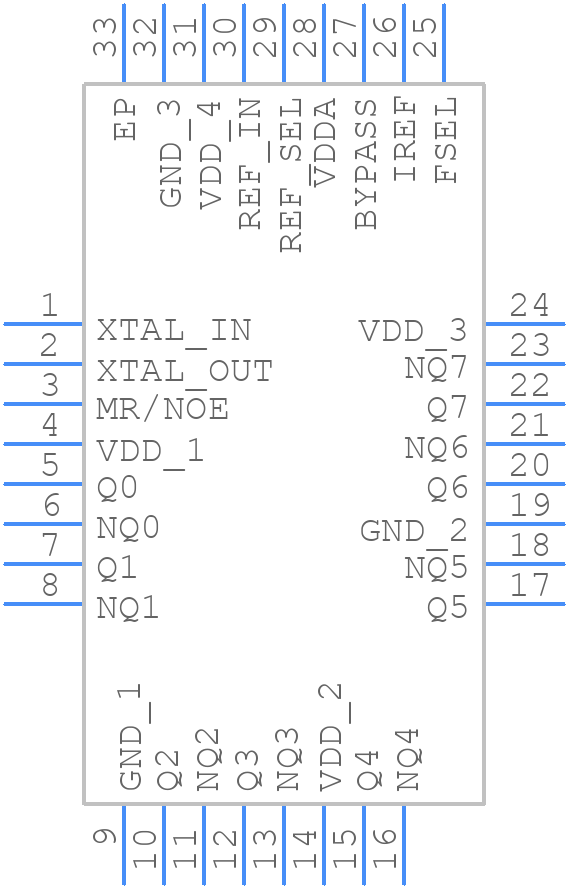

Symbol
841608AKILF - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
841608AKILF - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-pin VFQFPN_1
click to zoom
3D Models
841608AKILF - Renesas Electronics - 3D model - Quad Flat No-Lead - 32-pin VFQFPN_1
click to zoom

841608AKILF Details

  • Manufacturer Part Number:

    841608AKILF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    VFQFPN

  • Package Description:

    VFQFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    NLG32P1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    125 MHz

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    25 MHz

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    87 mA

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, OTHER

841608AKILF Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 841608AKILF is -40°C to 125°C.
  • To ensure reliable communication, use proper shielding, grounding, and decoupling techniques. Additionally, consider using differential signaling and implementing error-checking mechanisms in your communication protocol.
  • The maximum current draw of the 841608AKILF is approximately 100mA. When designing the power supply, ensure it can provide a stable voltage and sufficient current to meet the device's requirements, taking into account any voltage drops and power losses in the system.
  • Implement a reset mechanism using a dedicated reset pin or a watchdog timer. Ensure the reset signal is properly debounced and synchronized with the device's clock to prevent spurious resets.
  • Follow best practices for PCB layout and routing, such as keeping signal traces short and away from noise sources, using ground planes, and minimizing electromagnetic interference (EMI).

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

841608AKILF Overview

Use the download button to access the 841608AKILF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 84160, or try a keyword search, such as Clock Generators
