841654AGILF - Renesas Electronics

Description: The 841654I is an optimized PCIe and sRIO clock generator and member of the family of high-performance clock solutions from IDT. The device uses a 25MHz parallel crystal to generate 100MHz and 125MHz clock signals, replacing solutions requiring multiple oscillator and fanout buffer solutions. The device has excellent phase jitter (< 1ps rms) suitable to clock components requiring precise and low-jitter PCIe or sRIO or both clock signals. Designed for telecom, networking and industrial applications, the 8416

Download 841654AGILF Model

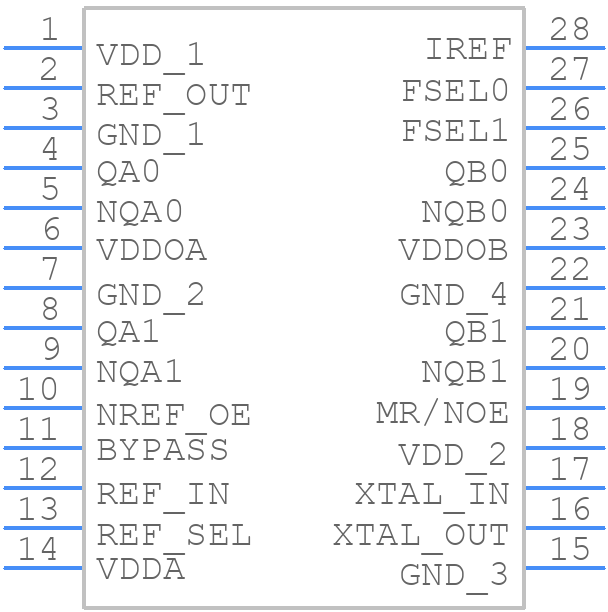

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
841654AGILF - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 28 LEAD TSSOP
click to zoom
3D Models
841654AGILF - Renesas Electronics  - 3D model - Small Outline Packages - 28 LEAD TSSOP
click to zoom

841654AGILF Details

  • Manufacturer Part Number:

    841654AGILF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Pin Count:

    28

  • Manufacturer Package Code:

    DQG28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    125 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    25 MHz

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    85 mA

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    6.1 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, OTHER

841654AGILF Frequently Asked Questions (FAQs)

  • Renesas recommends a 4-layer PCB with a solid ground plane and thermal vias to dissipate heat efficiently. A minimum of 2 oz copper thickness is recommended for the power plane.
  • Implement a robust communication protocol with error detection and correction mechanisms, such as CRC and checksums. Ensure proper signal termination, and use a common clock source to synchronize devices on the bus.
  • Power up the device in the following sequence: VCC, AVCC, and then DVCC. Ensure a minimum of 10 ms delay between each power-up step to prevent latch-up.
  • Use a metal shield or a Faraday cage to enclose the device, and ensure proper grounding and decoupling of power supplies. Implement EMI filters and shielding on I/O lines to minimize radiation.
  • Ensure a minimum of 10 mm clearance around the device for airflow, and use a heat sink with a thermal interface material (TIM) to dissipate heat. Avoid blocking airflow vents and ensure good thermal conductivity between the device and heat sink.
