Description:The 841664I is an optimized sRIO clock generator and a member of the family of high-performance clock solutions from IDT. The device uses a 25MHz parallel crystal to generate 125MHz and 156.25MHz clock signals, replacing solution requiring multiple oscillator and fanout buffer solutions. The device has excellent phase jitter (< 1ps rms) suitable to clock components requiring precise and low-jitter sRIO clock signals. Designed for telecom, networking and industrial application, the 841664I can also drive the
Renesas provides a recommended PCB layout guide in their application note (APL-AN-001) which includes thermal design considerations, such as using thermal vias and a solid ground plane to improve heat dissipation.
Implementing proper signal integrity measures, such as using differential signaling, adding capacitors for noise filtering, and ensuring proper termination, can help ensure reliable communication in noisy environments.
The datasheet recommends a specific power-on sequence to prevent damage to the device. It's essential to follow the recommended power-up sequence, which is: VCC, then VCCIO, and finally VREF.
Renesas provides an error handling guide in their user manual, which includes information on error detection, error correction, and exception handling. It's essential to implement error handling mechanisms to ensure system reliability.
The device has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to implement thermal management techniques, such as heat sinks, thermal interfaces, and airflow management, to keep the device within its recommended operating temperature range.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
841664AGILF Overview

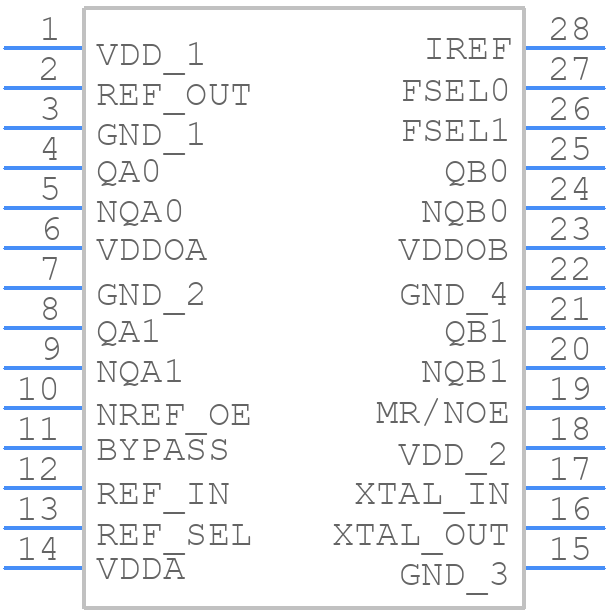

Use the download button to access the 841664AGILF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 84166,
or try a keyword search, such as Clock Generators
