Description:The 843004-01 is a 4 output LVPECL synthesizer optimized to generate Ethernet reference clock frequencies and is a member of the family of high performance clock solutions from IDT. Using a 25MHz 18pF parallel resonant crystal, the following frequencies can be generated based on the settings of 2 frequency select pins (F_SEL[1:0]): 156.25MHz, 125MHz, 62.5MHz. The 843004-01 uses IDT's 3rd generation low phase noise VCO technology and can achieve 1ps or lower typical rms phase jitter, easily meeting Ethernet
Renesas provides a reference design guide for PCB layout and thermal management. It's recommended to follow the guidelines for optimal performance and thermal dissipation. Additionally, ensure a solid ground plane, decoupling capacitors, and a low-ESR capacitor for power supply filtering.
Renesas recommends using a power management IC (PMIC) or a dedicated voltage regulator to ensure proper power sequencing and voltage regulation. The datasheet provides guidelines for power-up and power-down sequences. Consult the PMIC or voltage regulator datasheet for specific implementation details.
The 843004AG-01LF is rated for operation within a temperature range of -40°C to 125°C, humidity up to 60%, and vibration up to 10G. However, it's recommended to consult the datasheet and application notes for specific guidelines on operating conditions and environmental considerations.
Renesas provides a range of debugging tools and software, including the Renesas Flash Development Toolkit and the Renesas E1/E20 Emulator. Consult the datasheet, application notes, and user manuals for troubleshooting guidelines and debugging techniques.
The 843004AG-01LF meets various safety and regulatory standards, including IEC/UL 62368-1, IEC 60601-1, and RoHS. Ensure compliance with relevant standards and regulations for your specific application. Consult the datasheet and application notes for guidance on safety and regulatory considerations.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
843004AG-01LF Overview

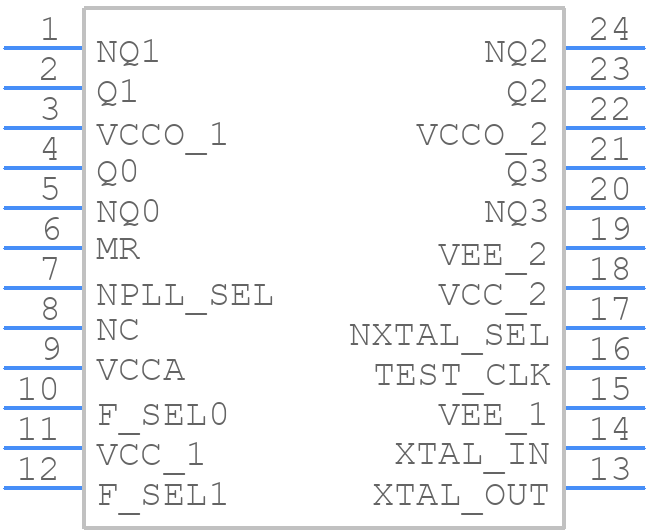

Use the download button to access the 843004AG-01LF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 84300,
or try a keyword search, such as Clock Generators
