843071AGILFT - Renesas Electronics

Description: The 843071I is a Serial ATA (SATA)/Serial Attached SCSI (SAS) Clock Generator. The 843071I uses an 18pF parallel resonant crystal over the range of 20.833MHz - 28.3MHz. For SATA/SAS applications, a 25MHz crystal is used and either 75MHz or 150MHz may be selected with the FREQ_SEL pin. For 10Gb Fibre Channel applications, a 26.5625MHz crystal is used for 159.375MHz output. The 843071I has excellent <1ps phase jitter performance, over the 12kHz - 20MHz integration range. The 843071I is packaged in a small 8-p

Download 843071AGILFT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

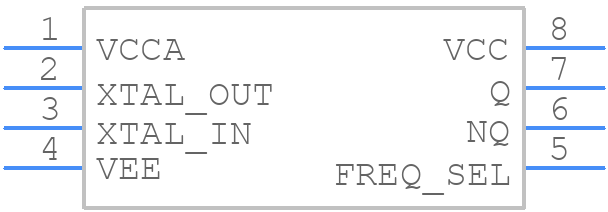

843071AGILFT - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
843071AGILFT - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PGG 8_1
click to zoom
3D Models
843071AGILFT - Renesas Electronics - 3D model - Small Outline Packages - PGG 8_1
click to zoom

843071AGILFT Details

  • Manufacturer Part Number:

    843071AGILFT

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Pin Count:

    8

  • Manufacturer Package Code:

    PGG8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Terminal Finish:

    Tin (Sn)

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, PROCESSOR SPECIFIC
