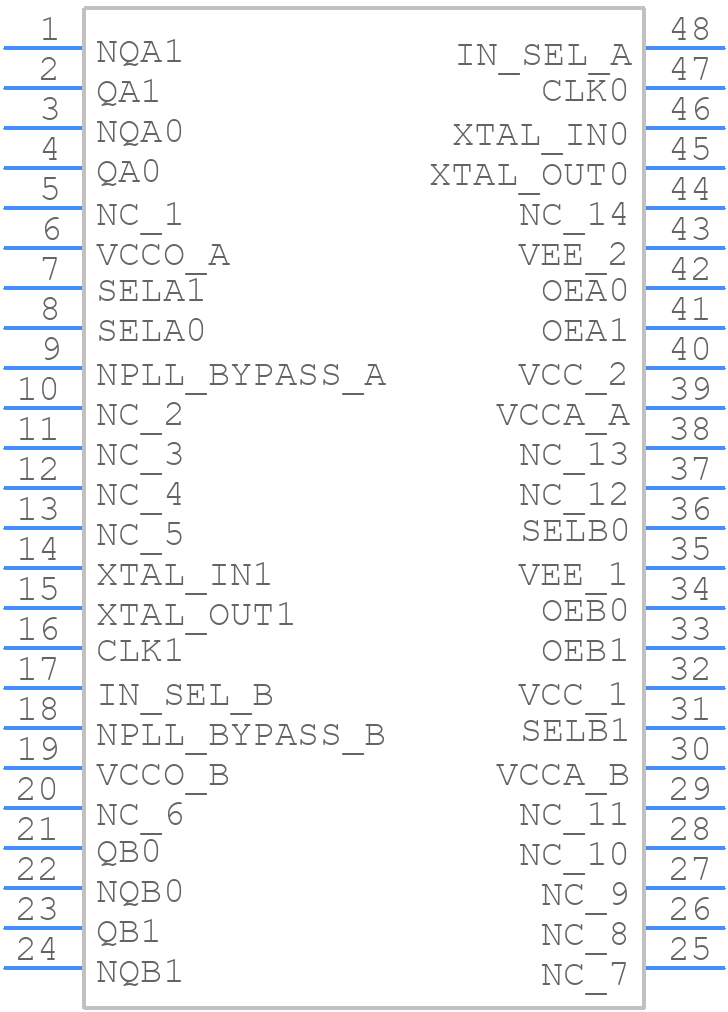

843204AGILF - Renesas Electronics

843204AGILF Details

• Manufacturer Part Number:

  843204AGILF

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  TSSOP

• Pin Count:

  48

• Manufacturer Package Code:

  PAG48

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• JESD-30 Code:

  R-PDSO-G48

• JESD-609 Code:

  e3

• Length:

  12.5 mm

• Moisture Sensitivity Level:

  1

• Number of Terminals:

  48

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Clock Frequency-Max:

  156.25 MHz

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Equivalence Code:

  TSSOP48,.3,20

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Primary Clock/Crystal Frequency-Nom:

  25 MHz

• Seated Height-Max:

  1.2 mm

• Supply Current-Max:

  165 mA

• Supply Voltage-Max:

  3.63 V

• Supply Voltage-Min:

  2.97 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Finish:

  Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Width:

  6.1 mm

• uPs/uCs/Peripheral ICs Type:

  CLOCK GENERATOR, ETHERNET
