Description:The 843204I is a 4 output LVPECL Synthesizer optimized to generate Gigabit Ethernet and SONET reference clock frequencies and is a member of the family of high performance clock solutions from IDT. Using a 19.44MHz and 25MHz, 18pF parallel resonant crystal, 155.52MHz and 156.25MHz frequencies can be generated. The 843204I uses IDT's FemtoClock™ low phase noise VCO technology and can achieve 1ps or lower typical RMS phase jitter. The 843204I is packaged in a 48-pin TSSOP package.
The recommended operating temperature range for the 843204AGILFT is -40°C to 125°C, as specified in the datasheet. However, it's essential to note that the device's performance and reliability may degrade if operated outside this range for extended periods.
To ensure proper power supply, connect the VCC pin to a stable 3.3V power source, and the GND pin to a solid ground. Additionally, decouple the power supply lines with suitable capacitors to minimize noise and voltage fluctuations.
The 843204AGILFT supports clock frequencies up to 100 MHz. However, the actual clock frequency may be limited by the specific application, PCB design, and signal integrity considerations.
To configure the 843204AGILFT for low-power operation, refer to the datasheet's power management section. You can use the Power-Down mode, Sleep mode, or Dynamic Voltage and Frequency Scaling (DVFS) to reduce power consumption. Additionally, optimize your firmware to minimize active mode duration and use power-gating techniques.
When designing a PCB with the 843204AGILFT, ensure proper signal routing, decoupling, and power distribution. Follow the datasheet's guidelines for pin placement, trace length, and impedance control. Also, consider using a 4-layer or 6-layer PCB to minimize noise and signal integrity issues.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
843204AGILFT Overview

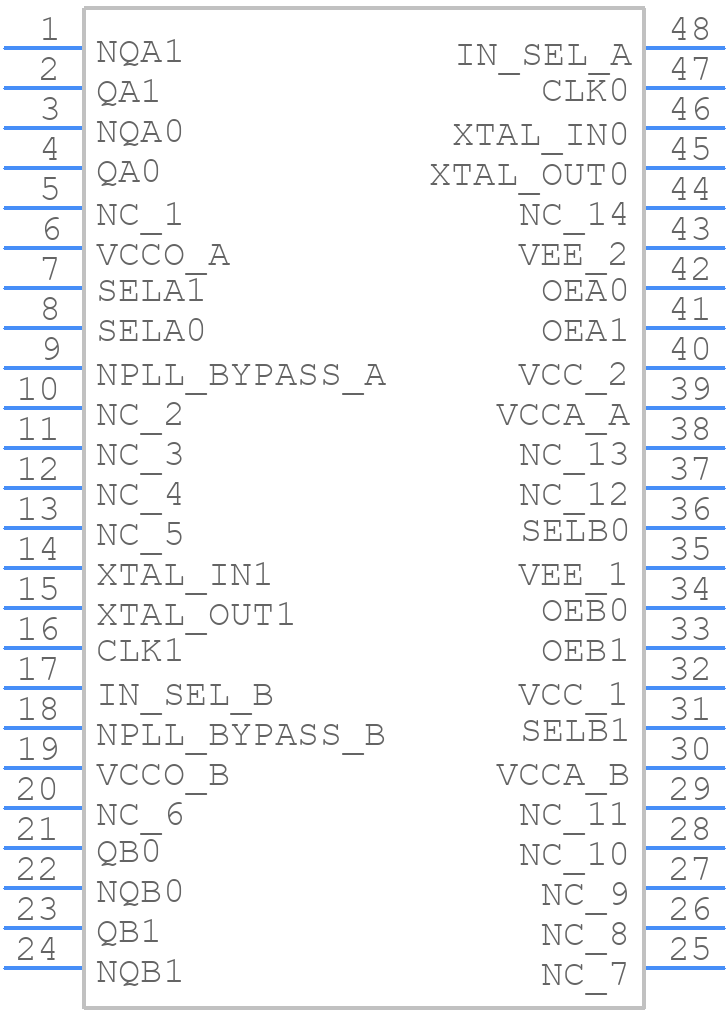

Use the download button to access the 843204AGILFT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 84320,
or try a keyword search, such as Clock Generators
