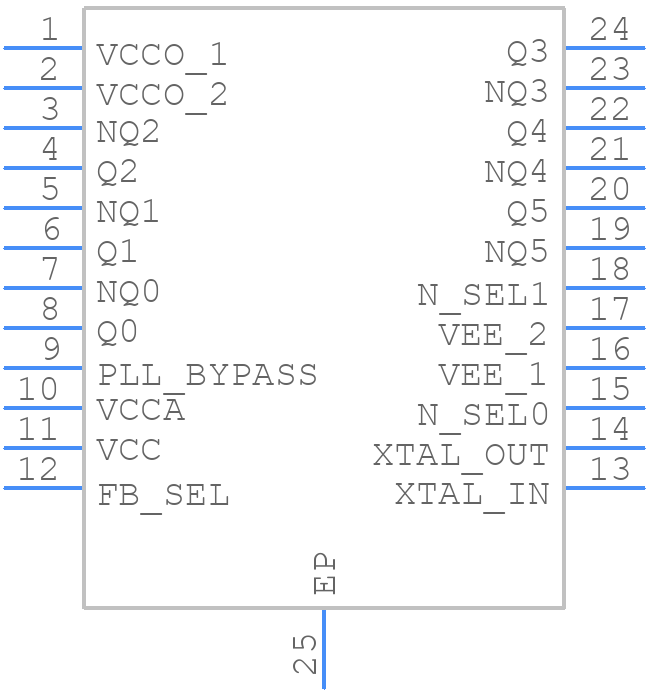

843256BGILFT - Renesas Electronics

843256BGILFT Details

• Manufacturer Part Number:

  843256BGILFT

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  TSSOP

• Pin Count:

  24

• Manufacturer Package Code:

  EJG24

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• JESD-30 Code:

  R-PDSO-G24

• JESD-609 Code:

  e3

• Length:

  7.8 mm

• Moisture Sensitivity Level:

  1

• Number of Terminals:

  24

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Clock Frequency-Max:

  625 MHz

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HTSSOP

• Package Equivalence Code:

  TSSOP24,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Primary Clock/Crystal Frequency-Nom:

  25.5 MHz

• Seated Height-Max:

  1.1 mm

• Supply Current-Max:

  190 mA

• Supply Voltage-Max:

  3.465 V

• Supply Voltage-Min:

  3.135 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Finish:

  TIN

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Width:

  4.4 mm

• uPs/uCs/Peripheral ICs Type:

  CLOCK GENERATOR, OTHER
