844003BG-01LF - Renesas Electronics

Description: The 844003-01 is a 3 differential output LVDS Synthesizer designed to generate Ethernet reference clock frequencies. Using a 19.53125MHz or 25MHz, 18pF parallel resonant crystal, the following frequencies can be generated based on the settings of 4 frequency select pins (DIV_SELA[1:0], DIV_SELB[1:0]): 625MHz, 312.5MHz, 156.25MHz, and 125MHz. The 844003-01 has 2 output banks, Bank A with 1 differential LVDS output pair and Bank B with 2 differential LVDS output pairs. The two banks have their own dedicated f

Download 844003BG-01LF Model

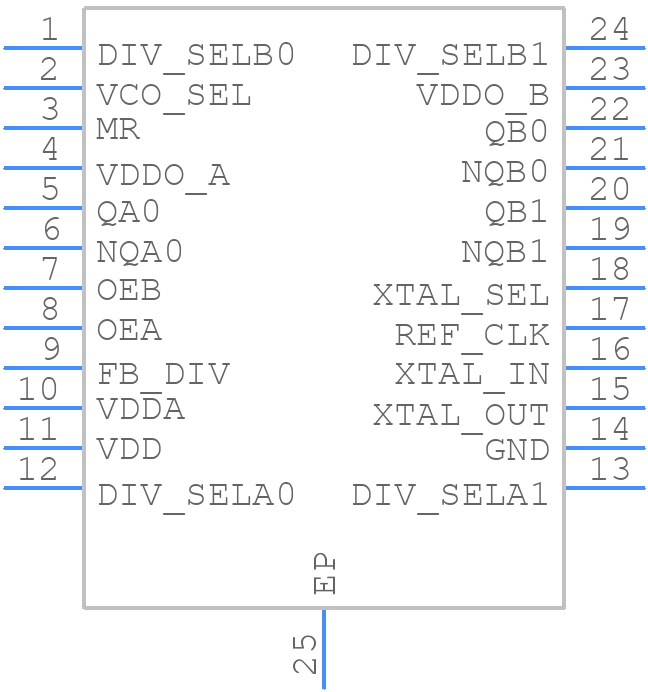

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

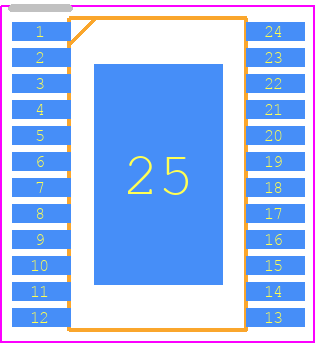

844003BG-01LF - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 24 Lead TSSOP, E-Pad
click to zoom
3D Models
844003BG-01LF - Renesas Electronics  - 3D model - Small Outline Packages - 24 Lead TSSOP, E-Pad
click to zoom

844003BG-01LF Details

  • Manufacturer Part Number:

    844003BG-01LF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    EJG24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    7.8 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    70 °C

  • Output Clock Frequency-Max:

    680 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    27.2 MHz

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    135 mA

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, OTHER

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

844003BG-01LF Overview

Use the download button to access the 844003BG-01LF schematic symbol, PCB footprint, and 3D model.
