Description:The 844004I-01 is a 4 output LVDS Synthesizer optimized to generate Ethernet reference clock frequencies. Using a 25MHz 18pF parallel resonant crystal, the following frequencies can be generated based on the 2 frequency select pins (F_SEL[1:0]): 156.25MHz, 125MHz and 62.5MHz. The 844004I-01 uses IDT's 3rd generation low phase noise VCO technology and can achieve <1ps typical rms phase jitter, easily meeting Ethernet jitter requirements. The 844004I-01 is packaged in a small 24-pin TSSOP package.
Renesas provides a reference design guide for the 844004BGI-01LFT, which includes recommendations for PCB layout, thermal management, and decoupling. It's essential to follow these guidelines to ensure optimal performance, low noise, and high reliability.
The 844004BGI-01LFT requires a specific power-up sequence to ensure proper operation. Renesas recommends using a power management IC (PMIC) or a dedicated power sequencer to control the voltage rails. The datasheet provides guidelines for power sequencing, and Renesas also offers application notes and reference designs for power management.
Renesas provides a comprehensive user manual and application notes that detail the recommended settings for the internal registers and configuration options. These resources cover topics such as clock configuration, pin multiplexing, and peripheral settings. It's essential to consult these resources to ensure proper device configuration and optimal performance.
Renesas offers a range of debugging tools and software, including the Renesas Debug Tool and the e² studio integrated development environment (IDE). These tools provide features such as code debugging, register access, and real-time tracing. Additionally, Renesas provides application notes and FAQs that cover common issues and troubleshooting techniques.
The 844004BGI-01LFT is rated for operation in a specific temperature range (-40°C to 125°C) and humidity range (5% to 95% RH). It's essential to ensure that the device operates within these conditions to maintain reliability and performance. Renesas provides detailed information on environmental and operating conditions in the datasheet and application notes.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
844004BGI-01LFT Overview

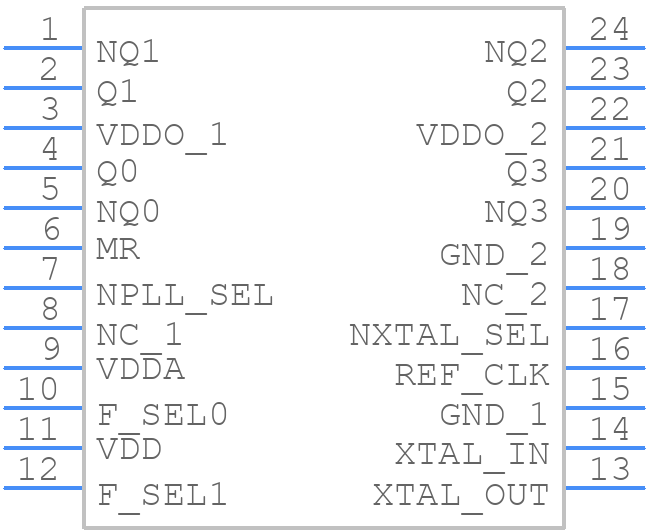

Use the download button to access the 844004BGI-01LFT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 84400,
or try a keyword search, such as Clock Generators
