844021BGI-01LF - Renesas Electronics

Description: The 844021I-01 is an Ethernet Clock Generator and a member of the family of high performance devices from IDT. The 844021I- 01 uses an 18pF parallel resonant crystal over the range of 24.5MHz – 34MHz. For Ethernet applications, a 25MHz crystal is used. The 844021I-01 has excellent <1ps phase jitter performance, over the 1.875MHz – 20MHz integration range. The 844021I-01 is packaged in a small 8-pin TSSOP, making it ideal for use in systems with limited board space.

Download 844021BGI-01LF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

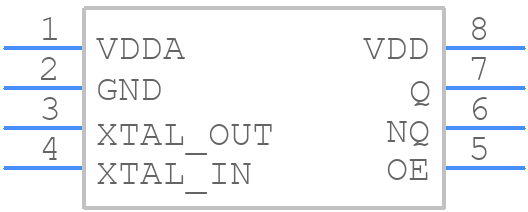

844021BGI-01LF - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
844021BGI-01LF - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 8-TSSOP Package Outline Drawing_J
click to zoom
3D Models
844021BGI-01LF - Renesas Electronics - 3D model - Small Outline Packages - 8-TSSOP Package Outline Drawing_J
click to zoom

844021BGI-01LF Details

  • Manufacturer Part Number:

    844021BGI-01LF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Pin Count:

    8

  • Manufacturer Package Code:

    PGG8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Additional Feature:

    ALSO OPERATES AT 3.3V SUPPLY

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    170 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    34 MHz

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    75 mA

  • Supply Voltage-Max:

    2.625 V

  • Supply Voltage-Min:

    2.375 V

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, OTHER

844021BGI-01LF Frequently Asked Questions (FAQs)

  • Renesas provides a reference design guide for PCB layout and thermal management. It's recommended to follow the guidelines for optimal performance and thermal dissipation. Additionally, a thermal pad is recommended to improve heat dissipation.
  • Renesas recommends following the power sequencing and voltage regulation guidelines outlined in the datasheet. A dedicated power management IC (PMIC) or a discrete voltage regulator can be used to ensure proper power sequencing and voltage regulation.
  • The recommended operating conditions are outlined in the datasheet. For over-voltage and under-voltage conditions, it's recommended to use voltage monitoring and protection circuits, such as a voltage supervisor or a reset IC, to ensure the device operates within the specified voltage range.
  • Renesas recommends following the clocking and CDC guidelines outlined in the datasheet. A dedicated clock generator or a clock distribution network can be used to ensure proper clocking and CDC.
  • Renesas recommends following the EMI and EMC design guidelines outlined in the datasheet. A shielded enclosure, proper grounding, and decoupling capacitors can help minimize EMI and ensure EMC compliance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

844021BGI-01LF Overview

Use the download button to access the 844021BGI-01LF schematic symbol, PCB footprint, and 3D model.
