Part Image

844256DGILF - Renesas Electronics

Description: The 844256DI is a Crystal-to-LVDS Clock Synthesizer/Fanout Buffer designed for SONET and Gigabit Ethernet applications. The output frequency can be set using the frequency select pins and a 25MHz crystal for Ethernet frequencies, or a 19.44MHz crystal for SONET. The low phase noise characteristics of the 844256DI make it an ideal clock for these demanding applications.

Download 844256DGILF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

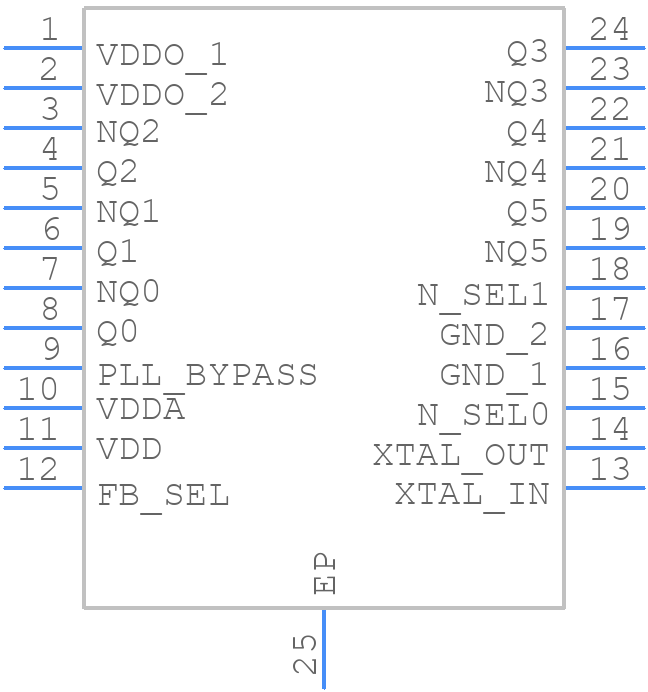

844256DGILF - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
844256DGILF - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - EJG24_
click to zoom
3D Models
844256DGILF - Renesas Electronics - 3D model - Small Outline Packages - EJG24_
click to zoom

844256DGILF Details

  • Manufacturer Part Number:

    844256DGILF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Pin Count:

    24

  • Manufacturer Package Code:

    EJG24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    TIN

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, OTHER

844256DGILF Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (APN) documents, which can be found on their website. The guide includes thermal vias, heat sink recommendations, and PCB layer stack-up suggestions to ensure optimal thermal performance.
  • Renesas recommends following the power sequencing guidelines outlined in the datasheet, which involves powering up the VCC and VCCIO pins in a specific order. Additionally, Renesas provides a power sequencing application note that provides more detailed information and examples.
  • Renesas recommends using high-quality, low-ESR decoupling capacitors with a value of 0.1uF to 1uF, placed as close as possible to the power pins. The datasheet provides more information on decoupling capacitor selection and placement.
  • Renesas provides a troubleshooting guide in their application note documents, which covers common issues and their solutions. Additionally, Renesas offers technical support through their website and support teams.
  • The 844256DGILF is rated for operation in the industrial temperature range (-40°C to 85°C) and is designed to meet various environmental standards, including RoHS and REACH. The datasheet provides more information on operating conditions and environmental compliance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

844256DGILF Overview

Use the download button to access the 844256DGILF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 84425, or try a keyword search, such as Clock Generators
