8442AB - Apem

8442AB Details

• Manufacturer Part Number:

  8442AB

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  UK

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.70.00

• Manufacturer:

  APEM Inc

• Actuator Finish:

  NICKEL

• Actuator Length:

  0.248 inch

• Actuator Material:

  BRASS

• Actuator Travel:

  2.6924 mm

• Actuator Type:

  PUSHBUTTON

• Body Breadth:

  11.9888 mm

• Body Height:

  19.4818 mm

• Body Length or Diameter:

  13.1826 mm

• Bushing Diameter:

  0.25 inch

• Bushing Length:

  0.275 inch

• Bushing Type:

  1/4-40

• Center Contact Material:

  SILVER

• Contact (AC) Max Rating R Load:

  3A@250VAC

• Contact Current(AC)-Max:

  3 A

• Contact Current(DC)-Max:

  4 A

• Contact (DC) Max Rating R Load:

  4A@30VDC

• Contact Function:

  ON-(ON)

• Contact Resistance:

  0.01 mΩ

• Contact Voltage(AC)-Max:

  250 V

• Contact Voltage(DC)-Max:

  30 V

• Dielectric Withstand Volts:

  1000VRMS V

• Electrical Life:

  30000 Cycle(s)

• End Contact Material:

  SILVER

• Housing Material:

  STAINLESS STEEL

• Insulation Resistance:

  1000000000 Ω

• Insulator Material:

  DIALLYL PHTHALATE

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

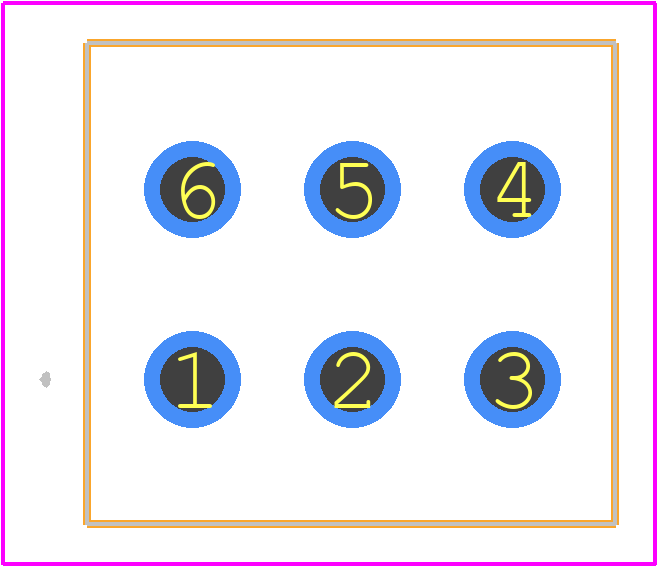

• PCB Hole Count:

  6

• Sealing:

  EPOXY

• Surface Mount:

  NO

• Switch Action:

  MOMENTARY

• Terminal Length:

  0.157 inch

• Termination Type:

  SOLDER
