- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 8444-11B1-RK-TP
- Part Number 8444-11B1-RK-TP
- Manufacturer 3M
- Pin Count 44
- Part Category Connector
- Package Category Other

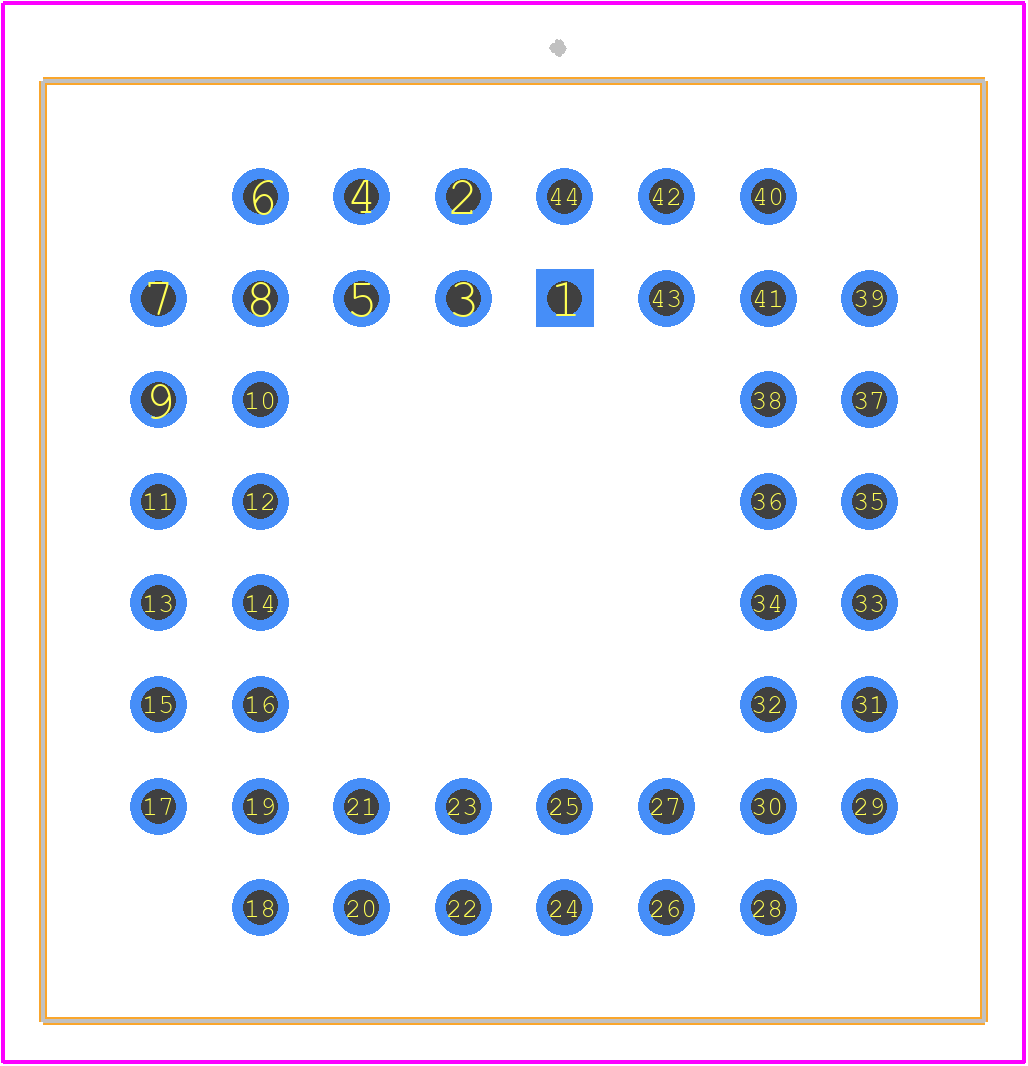

- Footprint Name Other - PLCC44
- Released Date Jan 5, 2018
- Last Modified Date Aug 20, 2025 10:56 AM UTC
- Pinout / Pin List Click Here (Member Only)
8444-11B1-RK-TP Details
-
Manufacturer Part Number:
8444-11B1-RK-TP
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
End Of Life
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Factory Lead Time:
10 Weeks
-
Manufacturer:
3M Interconnect
-
YTEOL:
0
-
Additional Feature:
STANDARD: UL 94V-0
-
Body Breadth:
0.926 inch
8444-11B1-RK-TP Frequently Asked Questions (FAQs)
-
The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
-
Yes, the 8444-11B1-RK-TP is designed to withstand vibrations and is suitable for use in high-vibration environments.
-
The operating temperature range for the 8444-11B1-RK-TP is -40°C to 125°C (-40°F to 257°F).
-
Yes, the 8444-11B1-RK-TP is designed to be resistant to harsh environments, including high humidity and exposure to certain chemicals. However, it's recommended to consult the datasheet and 3M's application notes for specific guidance.
-
It's not recommended to use a wire gauge that's significantly different from the recommended gauge, as it may affect the connector's performance and reliability. Consult the datasheet and 3M's application notes for specific guidance.
Trust Checks
Expert Contribution
System Verified
Community Approved
8444-11B1-RK-TP Overview
Use the download button to access the 8444-11B1-RK-TP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 8444-,
or try a keyword search, such as Sockets and Chip Carriers
