8452-21B1-RK-TP - 3M

Description: IC & Component Sockets 52P PLCC SOCKET SMT W/O LOC POSTS

Download 8452-21B1-RK-TP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
8452-21B1-RK-TP - 3M - PCB symbol
click to zoom
PCB Footprints

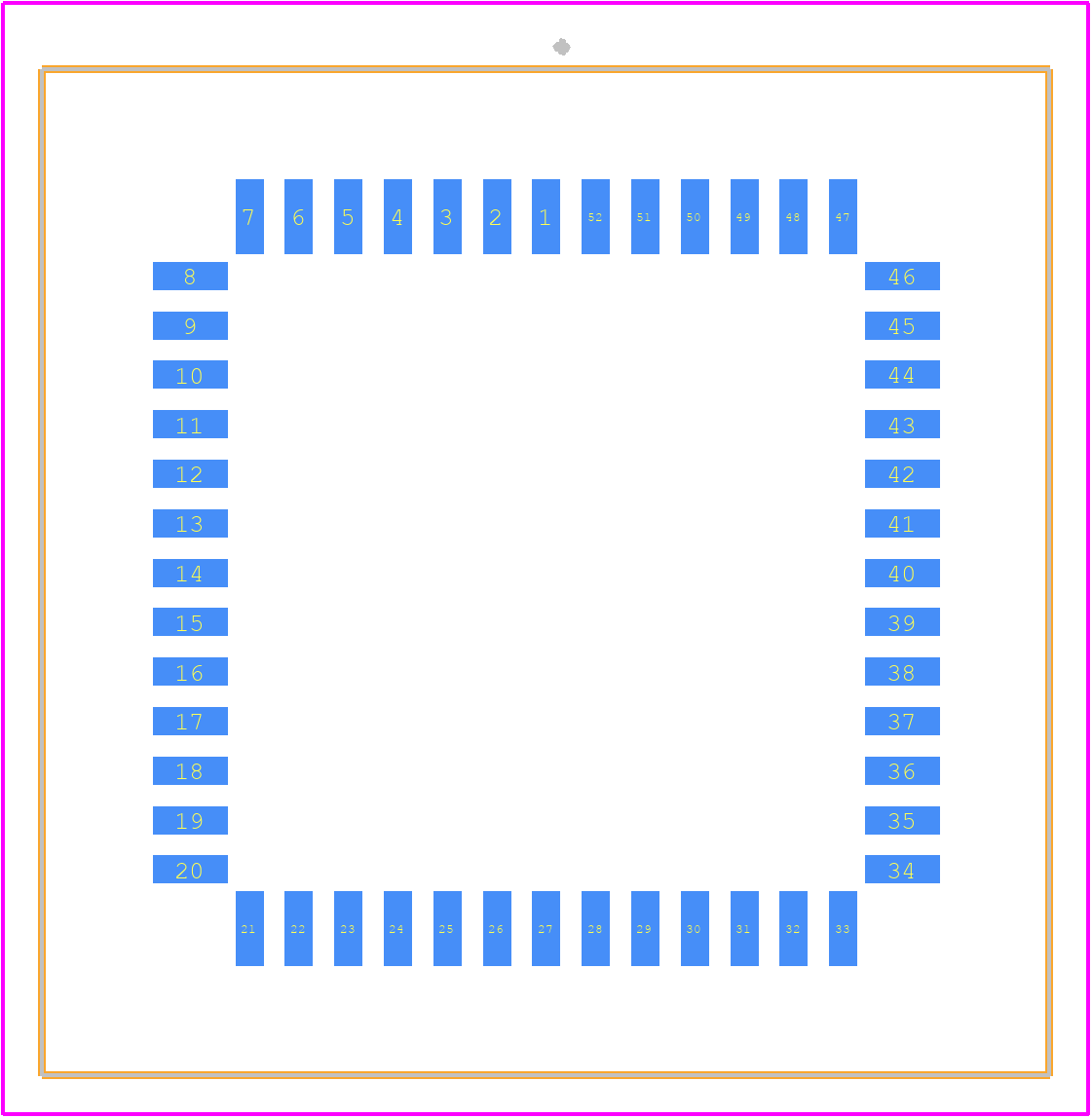

8452-21B1-RK-TP - 3M PCB footprint - Other - Other - 8452-21B1-RK-TP-2
click to zoom
3D Models
8452-21B1-RK-TP - 3M - 3D model - Other - 8452-21B1-RK-TP-2
click to zoom

8452-21B1-RK-TP Details

  • Manufacturer Part Number:

    8452-21B1-RK-TP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    3M Interconnect

  • YTEOL:

    0

  • Additional Feature:

    STANDARD: UL 94V-0

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Material:

    NOT SPECIFIED

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    PLCC52

  • Housing Material:

    GLASS FILLED POLYPHENYLENE SULFIDE

  • Insulation Resistance:

    1000000000 Ω

  • Number of Contacts:

    52

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SURFACE MOUNT

8452-21B1-RK-TP Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
  • Yes, the 8452-21B1-RK-TP is designed to withstand vibrations and is suitable for use in high-vibration environments.
  • The operating temperature range for the 8452-21B1-RK-TP is -40°C to 125°C (-40°F to 257°F).
  • Yes, the 8452-21B1-RK-TP is designed to be resistant to harsh environments, including high humidity and exposure to certain chemicals.
  • While the datasheet specifies 20 AWG wire, the connector can accommodate wire sizes from 18 AWG to 22 AWG, but consult 3M Interconnect for specific guidance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

8452-21B1-RK-TP Overview

Use the download button to access the 8452-21B1-RK-TP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 8452-, or try a keyword search, such as Sockets and Chip Carriers
