84702-0005 - Molex

Description: Molex Female Cat5e RJ45 Connector, Unshielded, Straight, PCB Mount Mount, 84702 5

Download 84702-0005 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
84702-0005 - Molex - PCB symbol
click to zoom
PCB Footprints

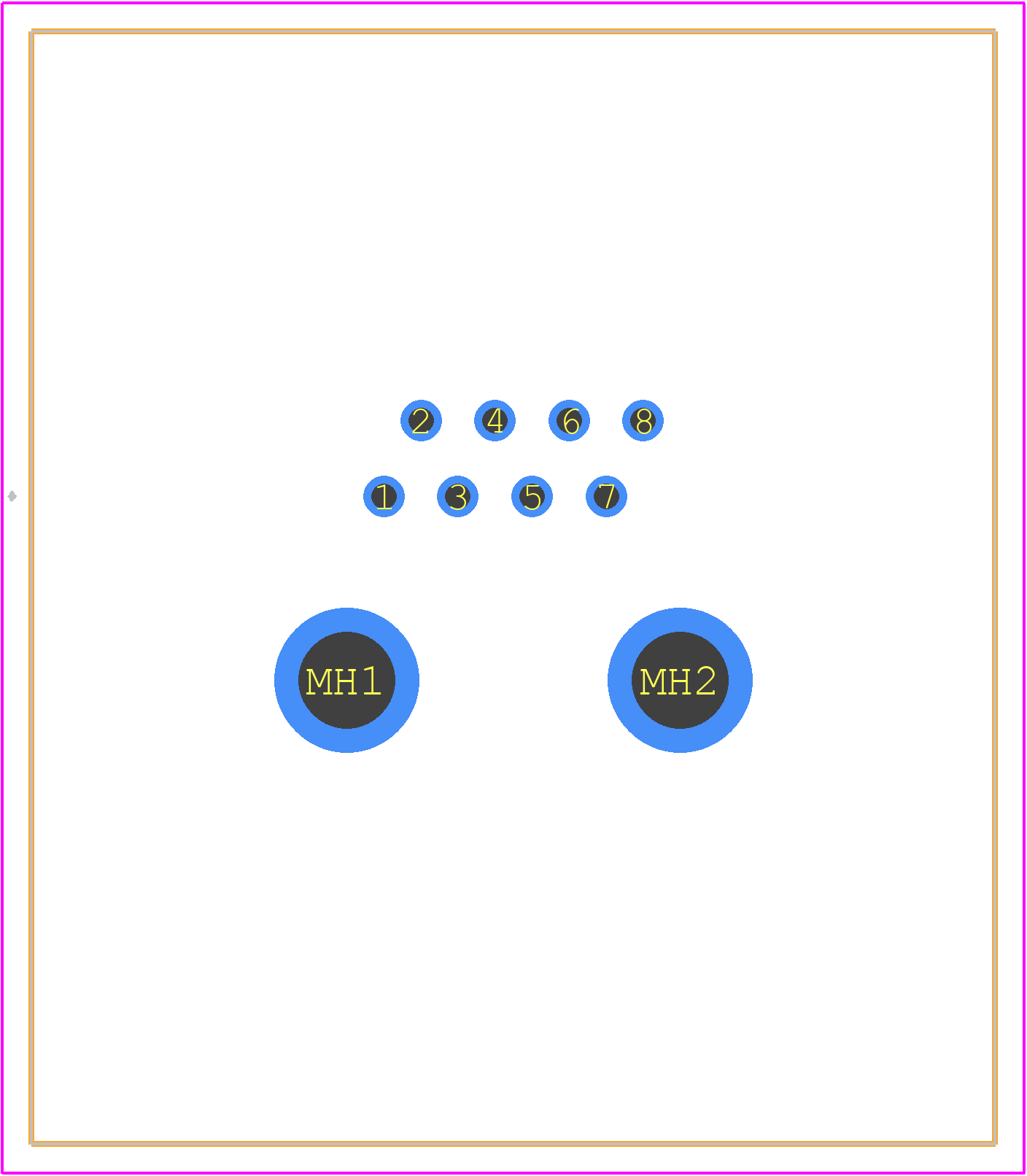

84702-0005 - Molex PCB footprint - Other - Other - 84702-0005-5
click to zoom
3D Models
84702-0005 - Molex - 3D model - Other - 84702-0005-5
click to zoom

84702-0005 Details

  • Manufacturer Part Number:

    84702-0005

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mexico, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Shell Material:

    POLYESTER

  • Total Number of Contacts:

    8

84702-0005 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs).
  • Yes, the 84702-0005 is designed to withstand vibrations and can be used in applications with moderate to high vibration levels.
  • The 84702-0005 has a IP67 rating, making it suitable for outdoor use and able to withstand exposure to water and dust.
  • The 84702-0005 has an operating temperature range of -40°C to 105°C (-40°F to 221°F).
  • No, the 84702-0005 is designed for use with wire gauges 20 AWG to 24 AWG. Using a larger wire gauge may not provide a secure connection.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

84702-0005 Overview

Use the download button to access the 84702-0005 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 84702, or try a keyword search, such as Telecom and Datacom Connectors
