8484-21B1-RK-TP - 3M

Description: IC & Component Sockets 84P PLCC SOCKET SMT W/O LOC POSTS

Download 8484-21B1-RK-TP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
8484-21B1-RK-TP - 3M - PCB symbol
click to zoom
PCB Footprints

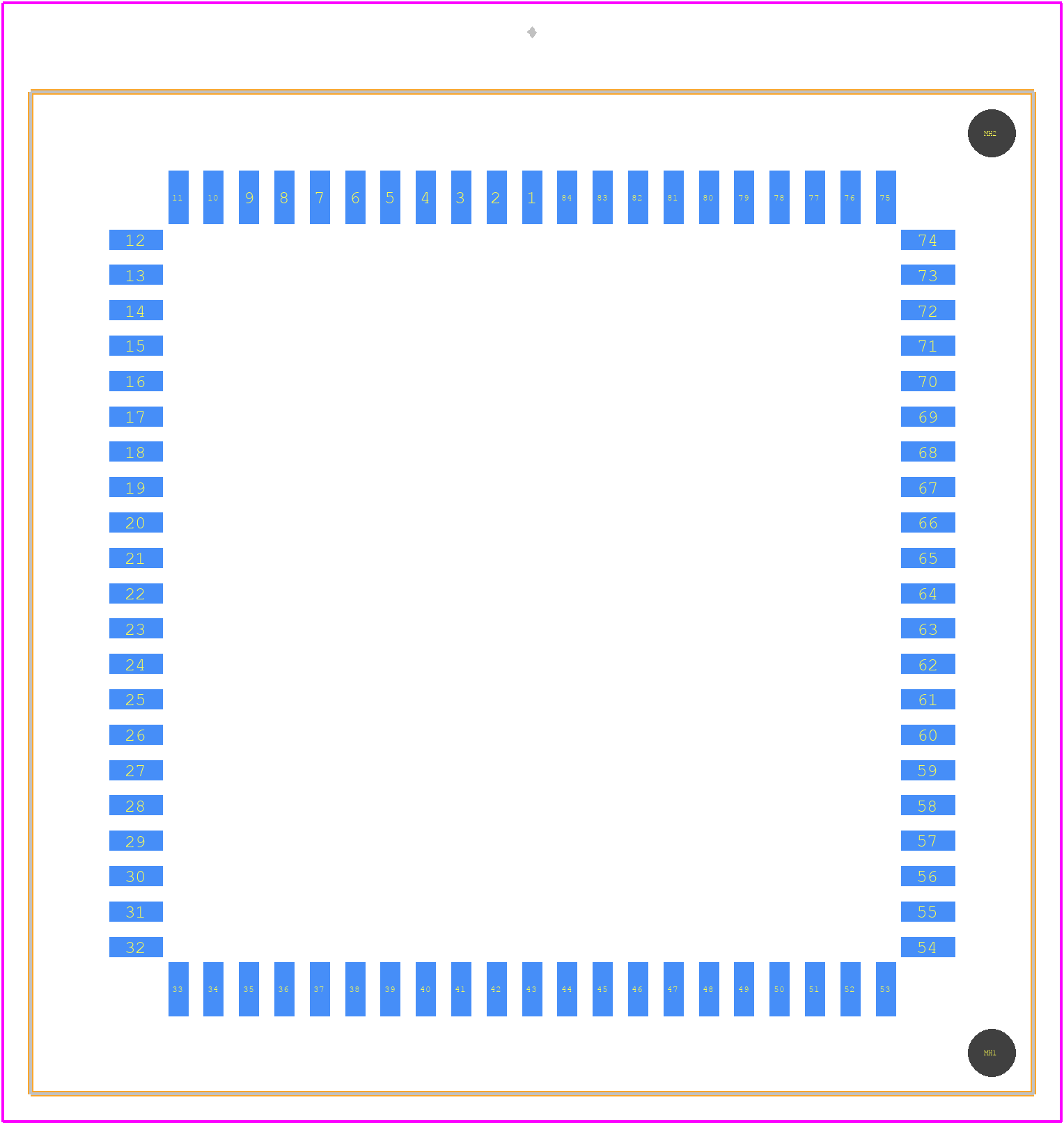

8484-21B1-RK-TP - 3M PCB footprint - Other - Other - 8484-21B1-RK-TP-3
click to zoom
3D Models
8484-21B1-RK-TP - 3M - 3D model - Other - 8484-21B1-RK-TP-3
click to zoom

8484-21B1-RK-TP Details

  • Manufacturer Part Number:

    8484-21B1-RK-TP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    11 Weeks, 6 Days

  • Manufacturer:

    3M Interconnect

  • YTEOL:

    0

  • Additional Feature:

    STANDARD: UL 94V-0

  • Contact Finish Mating:

    MATTE TIN (160) OVER NICKEL (50)

  • Contact Material:

    PHOSPHOR BRONZE

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    PLCC84

  • Housing Material:

    GLASS FILLED POLYPHENYLENE SULFIDE

  • Insulation Resistance:

    1000000000 Ω

  • Number of Contacts:

    84

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SURFACE MOUNT

8484-21B1-RK-TP Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
  • Yes, the 8484-21B1-RK-TP is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels.
  • The connector is rated for operating temperatures up to 125°C (257°F), making it suitable for use in high-temperature applications.
  • The 8484-21B1-RK-TP has an IP67 rating, providing protection against dust and water ingress.
  • No, the connector is designed for use with wire gauges 24 AWG to 30 AWG. Using a larger wire gauge may compromise the connector's performance and reliability.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

8484-21B1-RK-TP Overview

Use the download button to access the 8484-21B1-RK-TP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 8484-, or try a keyword search, such as Sockets and Chip Carriers
