851021AYLF - Renesas Electronics

851021AYLF Details

• Manufacturer Part Number:

  851021AYLF

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  TQFP

• Package Description:

  TQFP-64

• Pin Count:

  64

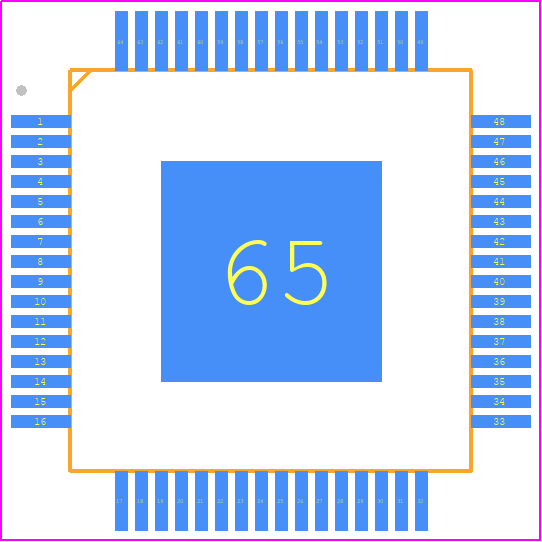

• Manufacturer Package Code:

  EDG64P2

• HTS Code:

  8542.39.00.01

• Factory Lead Time:

  4 Weeks

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Family:

  85102

• Input Conditioning:

  DIFFERENTIAL

• JESD-30 Code:

  S-PQFP-G64

• JESD-609 Code:

  e3

• Length:

  10 mm

• Logic IC Type:

  LOW SKEW CLOCK DRIVER

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  64

• Number of True Outputs:

  21

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HTFQFP

• Package Equivalence Code:

  TQFP64,.47SQ

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

• Packing Method:

  TRAY

• Peak Reflow Temperature (Cel):

  260

• Propagation Delay (tpd):

  2.75 ns

• Same Edge Skew-Max (tskwd):

  0.395 ns

• Seated Height-Max:

  1.2 mm

• Supply Voltage-Max (Vsup):

  3.465 V

• Supply Voltage-Min (Vsup):

  3.135 V

• Supply Voltage-Nom (Vsup):

  3.3 V

• Surface Mount:

  YES

• Terminal Finish:

  TIN

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Width:

  10 mm
