85211AMI-01LF - Renesas Electronics

Description: The 85211I-01 is a low skew, high performance 1-to-2 Differential-to-HSTL Fanout Buffer. The CLK, nCLK pair can accept most standard differential input levels. The 85211I- 01 is characterized to operate from a 3.3V power supply. Guaranteed output and part-to-part skew characteristics make the 85211I-01 ideal for those clock distribution applications demanding well defined performance and repeatability. For optimal performance, terminate all outputs.

Download 85211AMI-01LF Model

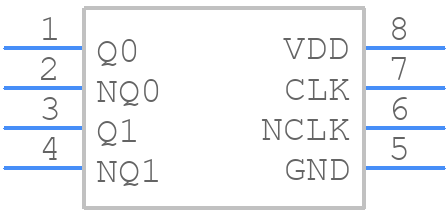

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
85211AMI-01LF - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - (8 LD SOIC)
click to zoom
3D Models
85211AMI-01LF - Renesas Electronics  - 3D model - Small Outline Packages - (8 LD SOIC)
click to zoom

85211AMI-01LF Details

  • Manufacturer Part Number:

    85211AMI-01LF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    DCG8

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Family:

    85211

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of True Outputs:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    22 mA

  • Prop. Delay@Nom-Sup:

    1 ns

  • Propagation Delay (tpd):

    1 ns

  • Same Edge Skew-Max (tskwd):

    0.03 ns

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    3.465 V

  • Supply Voltage-Min (Vsup):

    3.135 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

  • fmax-Min:

    700 MHz

85211AMI-01LF Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (R01AN3801EJ0100) which includes thermal design considerations, such as thermal vias, copper pours, and component placement, to ensure optimal thermal performance.
  • Renesas recommends a specific power sequencing scheme in their application note (R01AN3801EJ0100) to ensure proper device operation. The sequence involves powering up the VCC pin first, followed by the VDD pin, and then the AVCC pin.
  • Renesas recommends using 0.1uF to 1uF decoupling capacitors with a voltage rating of 10V or higher, placed as close as possible to the power pins (VCC, VDD, and AVCC) to reduce noise and ensure stable operation.
  • Renesas provides guidelines for JTAG interface handling during production testing in their application note (R01AN3801EJ0100). This includes using a JTAG adapter, setting the JTAG clock frequency, and using a boundary scan tool to access the device's internal registers.
  • The thermal resistance values for the 85211AMI-01LF package are not explicitly stated in the datasheet. However, Renesas provides thermal resistance values in their package thermal model document (R01TP3801EJ0100), which can be used for thermal analysis and simulation.
